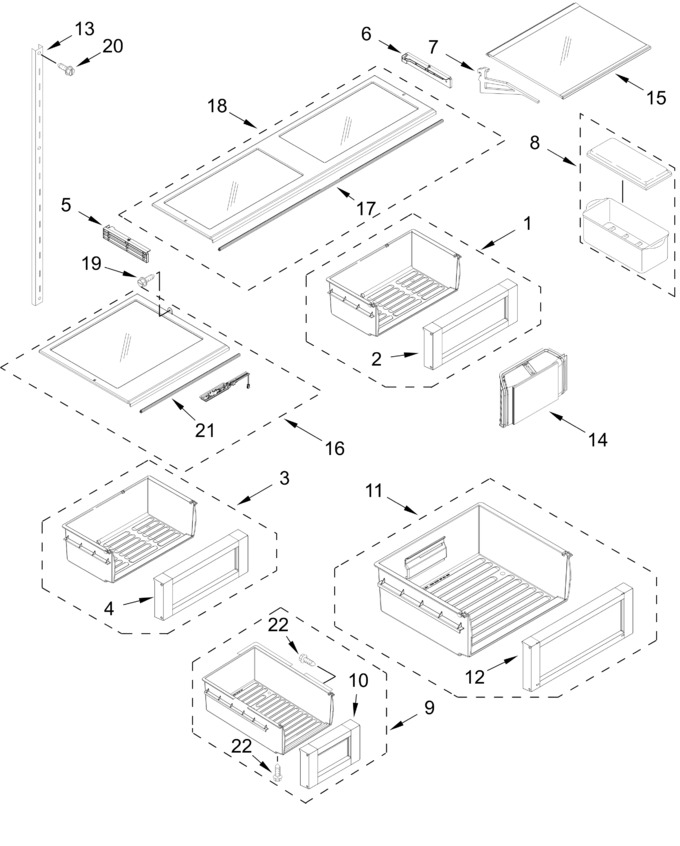

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529501		Pan Assembly, Crisper				$ 460.58
2	W10529479		Front, Crisper Pan				$ 384.55
3	W10529506		Pan Assembly, Deli				$ 342.31
4	W10529487		Front, Deli Pan		Appelez-nous	-
5	W10569842		Support, Crisper Cover (grey, Left Hand)		Appelez-nous	-
6	W10569839		Support, Crisper Cover (grey, Right Hand)		Appelez-nous	-
7	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
8	WP2221071A		Egg Bin Assembly   (Replaces: 2221071)				$ 25.79
9	W10626679		Pan Assembly, Ice				$ 378.87
10	W10626676		Front, Ice Pan		Appelez-nous	-
11	W10626681		Pan Assembly, Freezer				$ 382.08
12	W10626678		Front, Freezer Pan				$ 382.39
13	W10743255		Ladder, Shelf (black, Left Hand)		Appelez-nous	-
14	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
15	W11784354		Shelf Assembly, Glass   (Replaces: W11654573)				$ 214.92
16	W10559654		Cover, Deli Bin (left Hand)				$ 340.43
17	W10709357		Gasket Cover, Front (grey, Crisper)		Appelez-nous	-
18	WPW10569917		Cover, Crisper   (Replaces: W10569917)				$ 297.80
19	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
20	W10678207		Screw   (Replaces: W10832438)				$ 16.43
21	W10709358		Gasket Cover, Front (grey, Deli)		Appelez-nous	-
22	WP488787		Screw   (Replaces: 488886)				$ 11.26
	W10559655		Cover, Deli Bin (right Hand)				$ 330.83
	W10743254		Ladder, Shelf (black, Right Hand)		Appelez-nous	-
	W10743230		Ladder, Shelf (black, Center)		Appelez-nous	-
