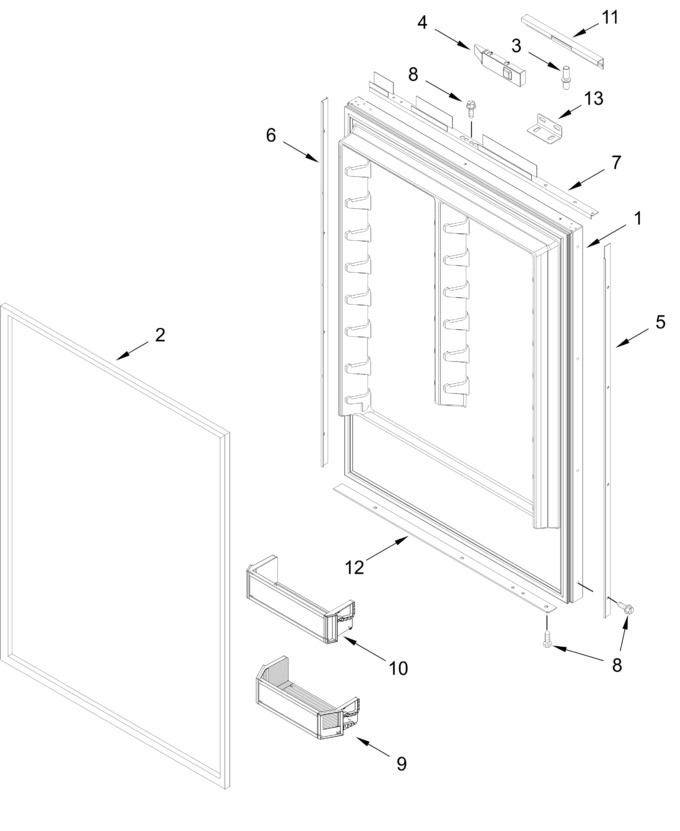

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827076		Left Door Assembly (includes Door Gasket)   (Replaces: W10613068)		Appelez-nous	-
2	W11625610		Gasket, Door (black)   (Replaces: W10613072)				$ 340.02
3	W10234194		Pin, Top Door				$ 15.89
4	W10606813		Insert, Door Arm (grey, Top)				$ 32.74
5	W10611106		Trim, Door (grey, Left Hand, Handle Side)				$ 230.11
6	W10613074		Trim, Door (grey, Hinge Side)				$ 274.86
7	W10611104		Trim, Door (grey, Left Hand, Top)		Appelez-nous	-
8	WPW10142233		Screw   (Replaces: W10142233)				$ 8.04
9	W11350965		Bin, Gallon				$ 356.53
10	W10529451		Bin, Shallow				$ 350.71
11	W10611107		Cover, Door (grey, Left Hand, Top)				$ 224.21
12	W10611105		Trim, Door (grey, Left Hand, Bottom)		Appelez-nous	-
13	W10606841		Bracket, Panel Mounting (grey)				$ 35.83
	W10772223		Mat, Door Bin		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W10606814		Insert, Door Arm (grey, Bottom)				$ 31.02
