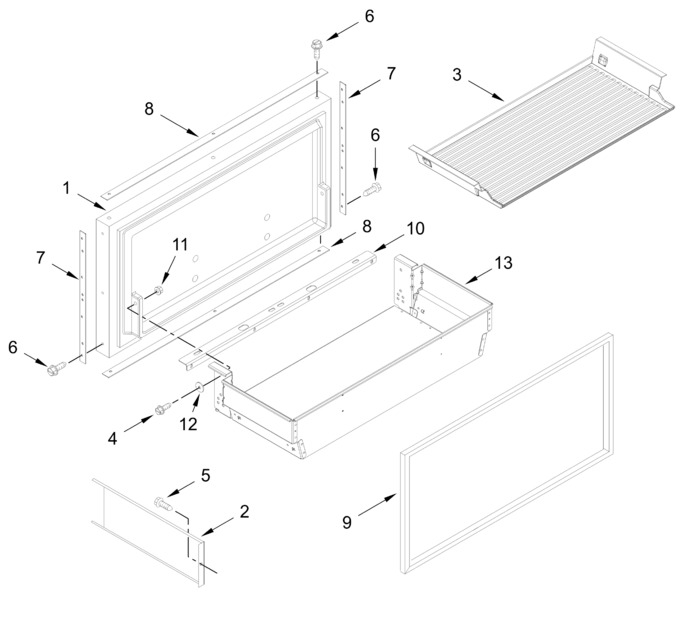

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827073 | Door, Freezer (included Door Gasket) (Replaces: W10613076) |
|
$ 682.70 | |||||
| 2 | W10606764 | Divider, Basket (grey) |
|
- | |||||
| 3 | W10665412 | Mat, Basket |
|
- | |||||
| 4 | W10761334 | Screw |
|
$ 11.70 | |||||
| 5 | W10678208 | Screw (black) |
|
$ 18.14 | |||||
| 6 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 7 | W10611111 | Trim, Door (grey, Side) |
|
Immediately | $ 179.56 | ||||
| 8 | W10611110 | Trim, Door (grey, Top And Bottom) |
|
$ 177.50 | |||||
| 9 | W11625088 | Gasket, Door (black) (Replaces: W10611109) |
|
Immediately | $ 276.64 | ||||
| 10 | W11256496 | Bracket, Panel Mounting (grey) (Replaces: W10606815) |
|
Immediately | $ 69.91 | ||||
| 11 | W10771111 | Nut |
|
Immediately | $ 18.23 | ||||
| 12 | W10001190 | Washer |
|
$ 7.92 | |||||
| 13 | W10774209 | Basket, Freezer (grey) |
|
$ 425.60 |
