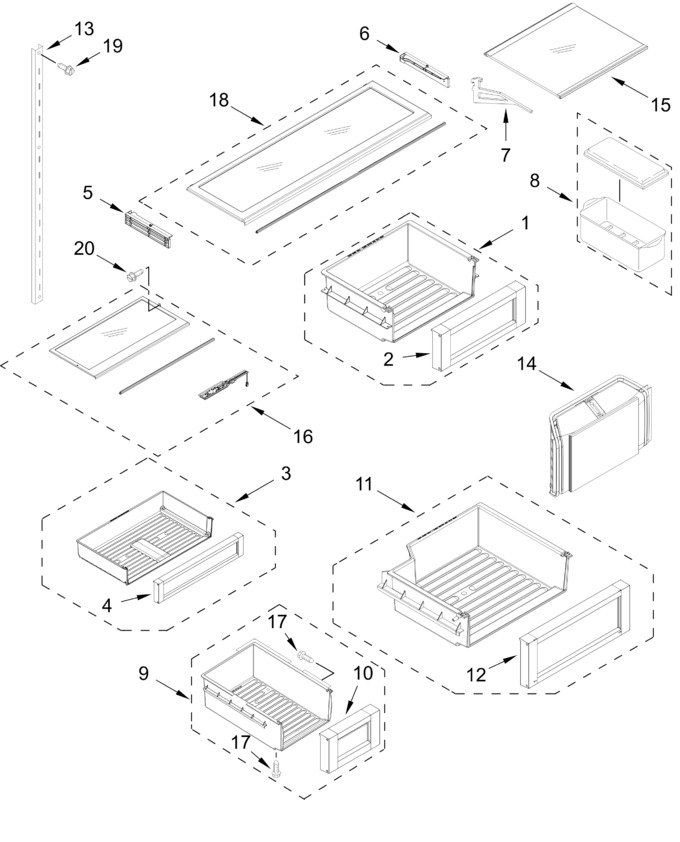

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529500		Pan Assembly, Crisper				$ 404.25
2	W10529477		Front Assembly, Crisper Pan		Appelez-nous	-
3	W10529502		Pan Assembly, Deli				$ 520.92
4	W10529485		Front Assembly, Deli Pan		Appelez-nous	-
5	W10569842		Support, Crisper Cover (grey, Left Hand)		Appelez-nous	-
6	W10569839		Support, Crisper Cover (grey, Right Hand)		Appelez-nous	-
7	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
8	WP2221071A		Egg Bin Assembly   (Replaces: 2221071)				$ 25.79
9	W10626679		Pan Assembly, Ice				$ 378.87
10	W10626676		Front, Ice Pan		Appelez-nous	-
11	W10626680		Pan Assembly, Freezer		Appelez-nous	-
12	W10626677		Front Assembly, Freezer Pan				$ 369.15
13	W10743252		Ladder, Shelf (grey, Left Hand)		Appelez-nous	-
14	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
15	W11756955		Shelf Assembly, Glass   (Replaces: W11654572)		Appelez-nous	-
16	WPW10569933		Cover, Deli Bin (grey)   (Replaces: W10569933)				$ 301.57
17	WP488787		Screw   (Replaces: 488886)				$ 11.26
18	WPW10569936		Cover, Crisper (grey)   (Replaces: W10569936)				$ 254.00
19	W10678207		Screw   (Replaces: W10832438)				$ 16.43
20	W10531302		Screw (black)		Appelez-nous	-
	W10743251		Ladder, Shelf (grey, Right Hand)		Appelez-nous	-
	W10743232		Ladder, Shelf (grey, Center)		Appelez-nous	-
