SELECT A DIAGRAM
New Model Search:

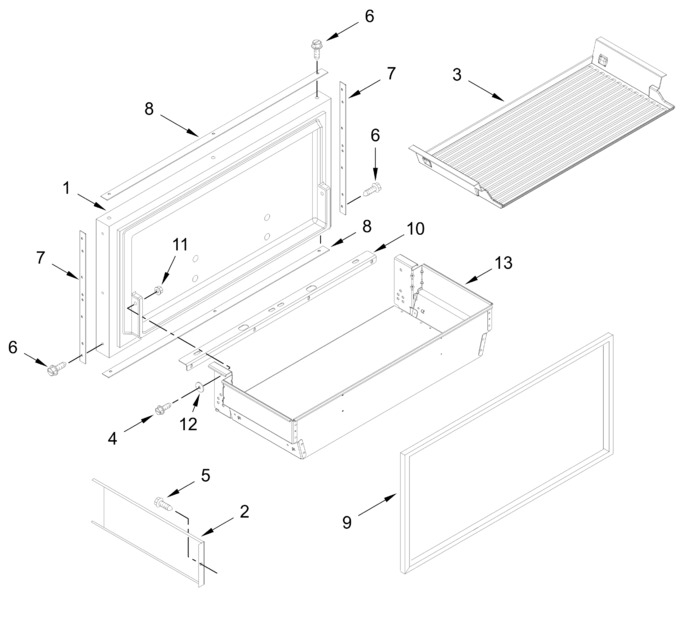

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827073 | Door, Freezer (included Door Gasket) (Replaces: W10613076) |
|
$ 758.55 | |||||
| 2 | W10606764 | Divider, Basket (grey) |
|
- | |||||
| 3 | W10665412 | Mat, Basket |
|
- | |||||
| 4 | W10761334 | Screw |
|
$ 13.00 | |||||
| 5 | W10678208 | Screw (black) |
|
$ 20.16 | |||||
| 6 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 7 | W10611111 | Trim, Door (grey, Side) |
|
Immediately | $ 199.51 | ||||
| 8 | W10611110 | Trim, Door (grey, Top And Bottom) |
|
$ 197.22 | |||||
| 9 | W11625088 | Gasket, Door (black) (Replaces: W10611109) |
|
Immediately | $ 307.38 | ||||
| 10 | W11256496 | Bracket, Panel Mounting (grey) (Replaces: W10606815) |
|
Immediately | $ 77.68 | ||||
| 11 | W10771111 | Nut |
|
Immediately | $ 20.25 | ||||
| 12 | W10001190 | Washer |
|
$ 8.80 | |||||
| 13 | W10774209 | Basket, Freezer (grey) |
|
$ 472.89 |
