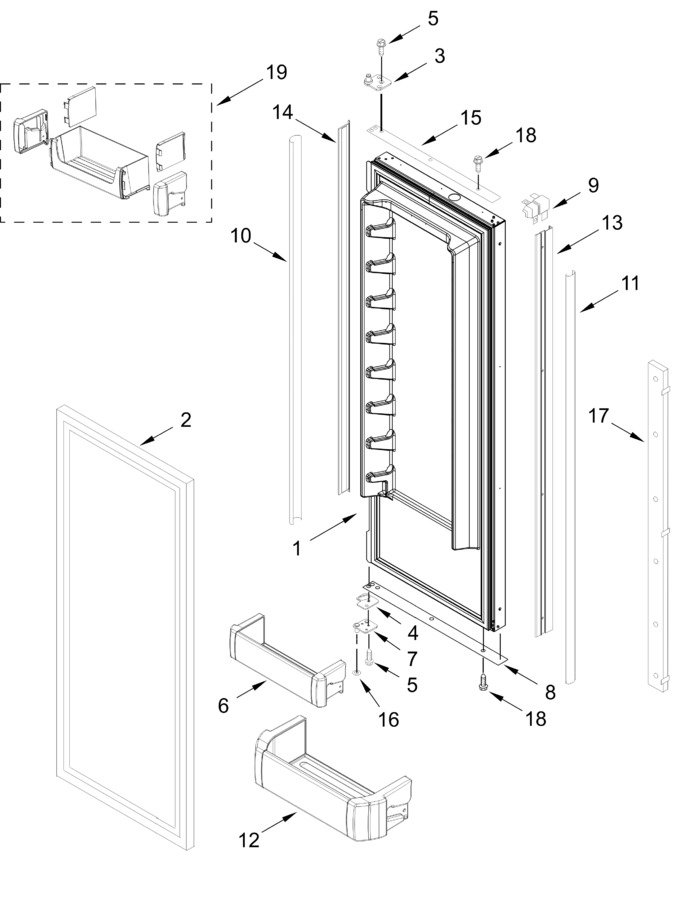

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827080		Left Door Assembly (includes Door Gasket)   (Replaces: W10796466)				$ 758.55
2	W10600741		Gasket, Door (grey)				$ 228.32
3	W11779146		Hinge Assembly, Top   (Replaces: W11657507)			Immediately	$ 54.42
4	W11673500		Spacer, Door Hinge (bottom)   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10529548		Bin, Door (shallow)				$ 290.81
7	W10273369		Hinge Assembly, Bottom (left Hand)				$ 41.21
8	2314031S		Trim, Bottom Door				$ 261.52
9	2207457		Trim, Corner				$ 57.12
10	2309022S		Cover, Side Trim (hinge Side)				$ 118.89
11	2309021S		Cover, Side Trim (handle Side)				$ 96.86
12	W10529544		Bin, Door (gallon)				$ 316.01
13	2314030S		Trim, Door (handle Side)				$ 279.02
14	2309031S		Trim, Door (hinge Side)				$ 402.43
15	2314028S		Trim, Top Door				$ 266.68
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11812028		Mullion Assembly   (Replaces: W11590864)			Immediately	$ 243.86
18	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
19	W11610621		Bin, Top Door		Appelez-nous	-
	W10273367		Hinge Assembly, Bottom (right Hand)				$ 41.27
	W11827071		Right Door Assembly (includes Door Gasket)   (Replaces: W10600634)				$ 811.88
