Diagram for Freezer Door And Basket Parts
Freezer Door And Basket Parts

Diagram for Freezer Liner And Icemaker Parts
Freezer Liner And Icemaker Parts

Diagram for Lower Unit And Tube Parts
Lower Unit And Tube Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Top Grille And Unit Cover Parts
Top Grille And Unit Cover Parts

Diagram for Upper Unit Parts
Upper Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11797623 Door Assembly, Freezer (includes Door Gasket)   (Replaces: W10570168) Special Order $ 679.27

2 W10600711 Divider, Basket Appelez-nous -
3 W10665413 Mat, Freezer Basket (grey) Special Order $ 283.65

4 W10761334 Screw Special Order $ 13.00

5 WP488234 Screw   (Replaces: W10135792) Special Order $ 7.08

6 2258903 Cap, Door Corner Special Order $ 204.47

7 2313999S Trim, Side Door Special Order $ 216.57

8 2313998S Trim, Door (top & Bottom) Special Order $ 290.87

9 W10803138 Gasket, Door (grey)   (Replaces: W10600725) Special Order $ 349.30

10 2309213S Cover, Side Trim Special Order $ 91.94

11 W10109030 Screw Special Order $ 15.35

12 W11748041 Screw (stainless)   (Replaces: W11672062) Appelez-nous -
13 W10770921 Basket Assembly, Freezer Appelez-nous -
14 W10771111 Nut In-Stock Immediately $ 20.25

15 2309033S Cover, Top Trim Special Order $ 86.05

16 W10001190 Washer Special Order $ 8.80


    View Diagram in Separate Window     Print Icon   Print Part List

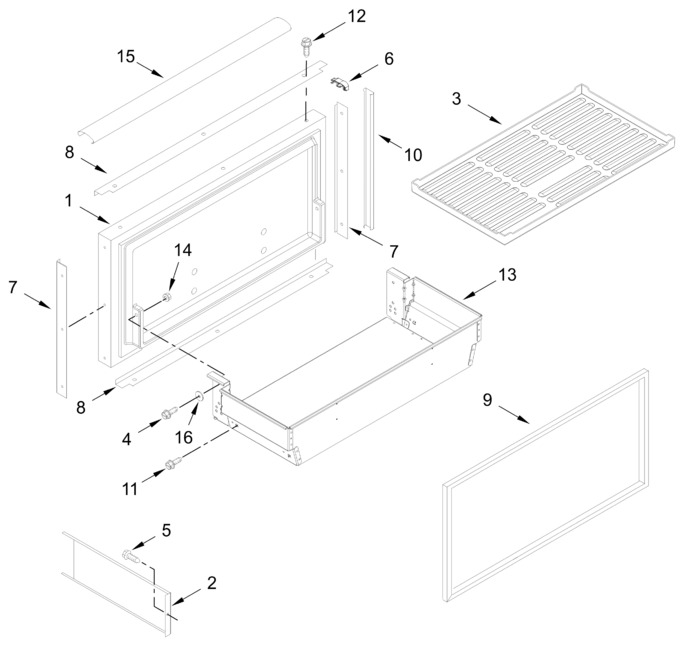

Diagram for KBFN502EPA06
