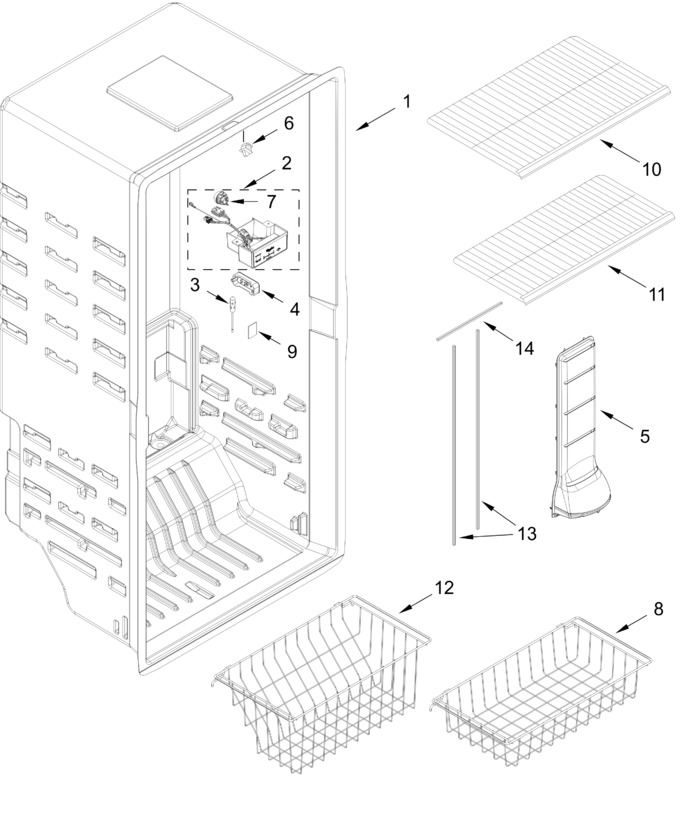

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11648349 | Assembly, Control (Replaces: W11555879) |
|
$ 166.61 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 120.82 | ||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 22.26 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 32.13 | |||||
| 8 | W10713813 | Basket, Shallow |
|
$ 275.89 | |||||
| 9 | 160123001 | Cover, Icemaker Hole |
|
- | |||||
| 10 | W10860909 | Shelf, Deep Wire (Replaces: W10569282) |
|
Immediately | $ 231.32 | ||||
| 11 | W11679651 | Shelf, Shallow Wire (Replaces: W10569283) |
|
$ 120.91 | |||||
| 12 | W10713812 | Basket, Deep |
|
$ 290.34 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.88 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 |
