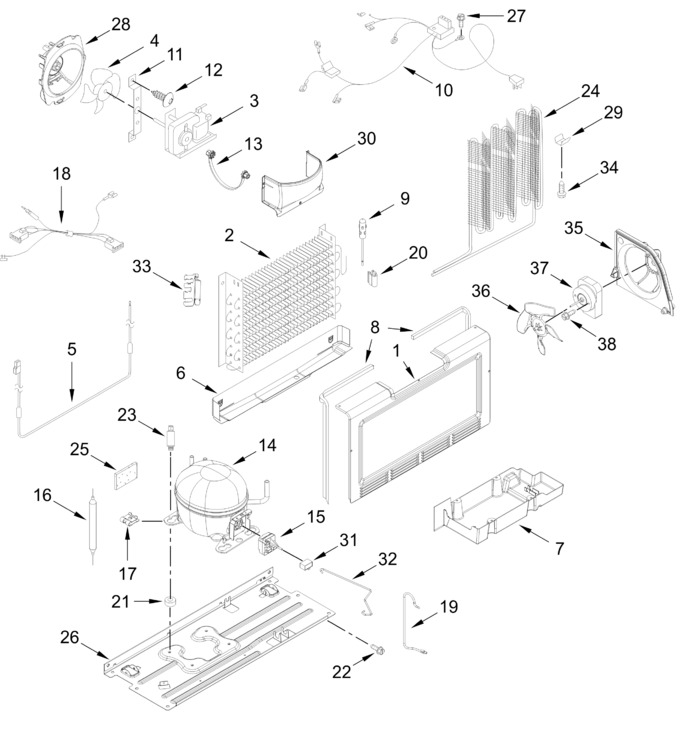

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 124.62 | |||||
| 2 | W11572047 | Evaporator (Replaces: W11490402) |
|
Immediately | $ 212.87 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 113.86 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 5 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 6 | W11562216 | Shield, Heat (Replaces: W11483529) |
|
$ 46.55 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 119.42 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 8.75 | |||||
| 9 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 10 | W11648069 | Harness, Unit (includes Power Cord) (Replaces: W11526288) |
|
$ 108.53 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: W11546547) |
|
Immediately | $ 14.72 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 14 | W11547313 | Compressor (Replaces: W11332031) |
|
Immediately | $ 621.99 | ||||
| 15 | W11524472 | Device, Start (Replaces: W11359985) |
|
Immediately | $ 32.45 | ||||
| 16 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 17 | W10697017 | Clip, Retaining |
|
- | |||||
| 18 | W11741458 | Harness, Evaporator Fan (Replaces: W11435965) |
|
$ 63.92 | |||||
| 19 | W11591093 | Tube, Suction |
|
$ 64.28 | |||||
| 20 | W11546684 | Clip, Evaporator Thermistor (Replaces: W11437914) |
|
Immediately | $ 12.33 | ||||
| 21 | WPW10169124 | Grommet, Compressor (Replaces: 10835903) |
|
$ 7.55 | |||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 23 | W11572046 | Screw (Replaces: W10720825) |
|
- | |||||
| 24 | W11507065 | Condenser Assembly (Replaces: W10574289) |
|
Immediately | $ 289.32 | ||||
| 25 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 26 | W10574497 | Pan, Compressor |
|
$ 169.84 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 37.86 | |||||
| 29 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 30 | W10574274 | Cover, Evaporator Fan |
|
$ 112.01 | |||||
| 31 | W11631831 | Run Capacitor (Replaces: W11584490) |
|
$ 65.21 | |||||
| 32 | W11524474 | Strap, Bale (Replaces: W11379613) |
|
- | |||||
| 33 | W11452250 | Bracket, Evaporator |
|
- | |||||
| 34 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 35 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 82.52 | ||||
| 36 | WPW10139483 | Blade, Condenser Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 37 | W11127829 | Motor, Condenser Fan (Replaces: W11505535) |
|
Immediately | $ 226.58 | ||||
| 38 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| ARIFCEC032782393DEB5E6F8972AEAF15B6 | (discharge Tube To Compressor) |
|
- | ||||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- | ||||||
| W11506635 | Tube, Charging (1/4 In, Includes Schrader Valve) |
|
Immediately | $ 37.03 | |||||
| ARI169C38591D7F4AD8FB3D43FAEA44FC75 | (charging Tube To Compressor) |
|
- | ||||||
| W11504448 | 5/1.8 Nr Al 00 |
|
Immediately | $ 48.58 | |||||
| ARI7AFB8E61A89689BD03F039F645915C7E | (discharge Tube To Condenser) |
|
- | ||||||
| ARI87D06E66E130AFDFB0AB7F80EFDBD61C | Drier To Condenser |
|
- | ||||||
| W11578570 | 7/4.5 Nr Ms 00 |
|
Immediately | $ 64.29 | |||||
| W11506622 | 6.35 Nk Al 00 |
|
Immediately | $ 33.20 | |||||
| W11504420 | 8/6 Nr Ms 00 |
|
Immediately | $ 25.88 | |||||
| W11504431 | 7/5 Nr Ms 00 |
|
Immediately | $ 27.13 | |||||
| W11506623 | 5 Nk Ms 00 |
|
Immediately | $ 22.00 | |||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- | ||||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| ARI00CE018046B44C2C3D8A4080BAE71A3A | 45 Grams (r600a) |
|
- | ||||||
| W11504450 | 4/1.8 Nr Ms 00 |
|
Immediately | $ 46.52 |
