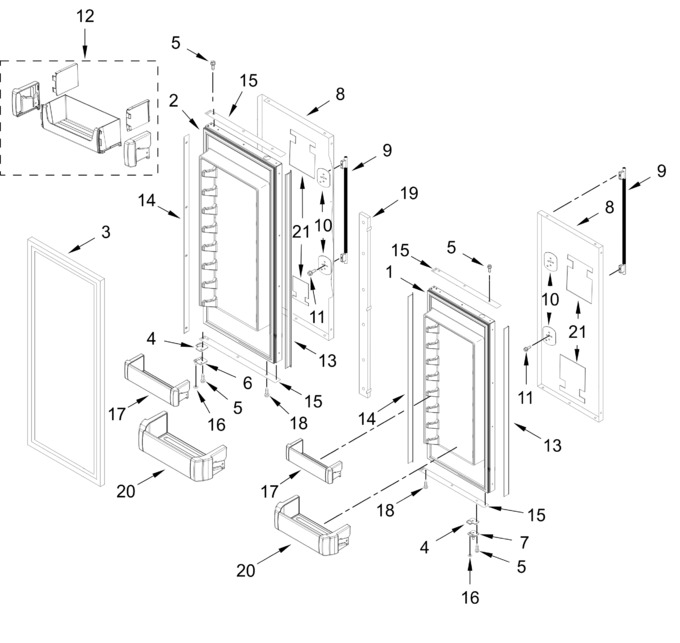

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827080		Left Door Assembly (includes Door Gasket)   (Replaces: W10796466)				$ 758.55
2	W11779693		Right Door Assembly (includes Door Gasket)		Appelez-nous	-
3	W10600741		Gasket, Door (grey)				$ 228.32
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10273369		Hinge Assembly, Bottom (left Hand)				$ 41.21
7	W10273367		Hinge Assembly, Bottom (right Hand)				$ 41.27
8	W11818992		Skin, Rc Door (black Ore)   (Replaces: W11744473)				$ 539.58
9	W11777492		Handle, Door (black Ore)   (Replaces: W11737009)				$ 271.05
10	W10127710		Plate, Handle Door			Immediately	$ 25.94
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
12	W11610621		Bin, Top Door		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 303.66
14	W10600734		Spacer, Door Edge (hinge Side)				$ 297.16
15	W10600732		Spacer, Door (top/ Bottom)				$ 168.98
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W10529548		Bin, Door (shallow)				$ 290.81
18	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
19	W11812028		Mullion Assembly   (Replaces: W11590864)			Immediately	$ 243.86
20	W10529544		Bin, Door (gallon)				$ 316.01
21	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
