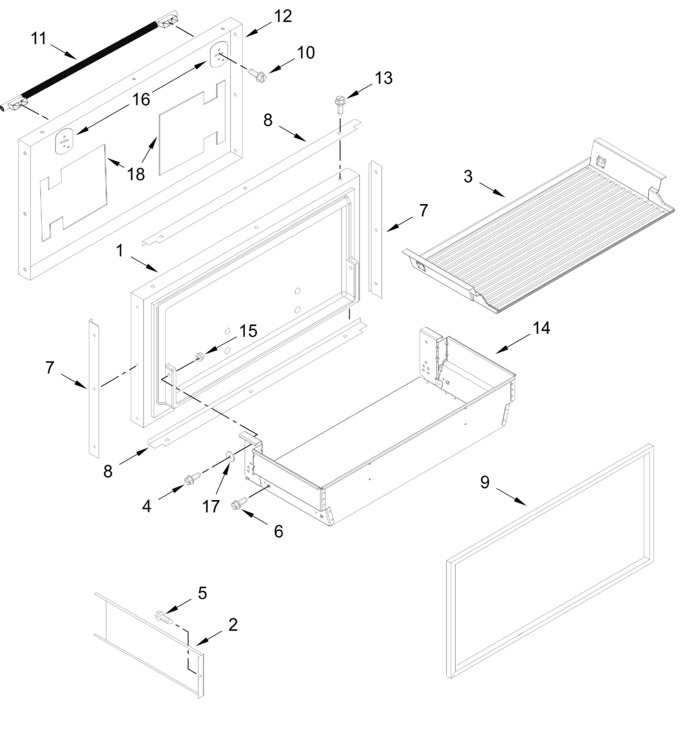

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797623		Door Assembly, Freezer (includes Door Gasket)   (Replaces: W10570168)				$ 679.27
2	W10600711		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Freezer Basket (grey)				$ 283.65
4	W10761334		Screw				$ 13.00
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	W10109030		Screw				$ 15.35
7	W10600723		Spacer, Door Edge (side)		Appelez-nous	-
8	W10600721		Spacer, Door Edge (top And Bottom)		Appelez-nous	-
9	W10803138		Gasket, Door (grey)   (Replaces: W10600725)				$ 349.30
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
11	W11777491		Handle, Door (black Ore)   (Replaces: W11742772)		Appelez-nous	-
12	W11818991		Skin, Fc Door (black Ore)   (Replaces: W11744464)		Appelez-nous	-
13	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
14	W10770921		Basket Assembly, Freezer		Appelez-nous	-
15	W10771111		Nut			Immediately	$ 20.25
16	W10127710		Plate, Handle Door			Immediately	$ 25.94
17	W10001190		Washer				$ 8.80
18	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
