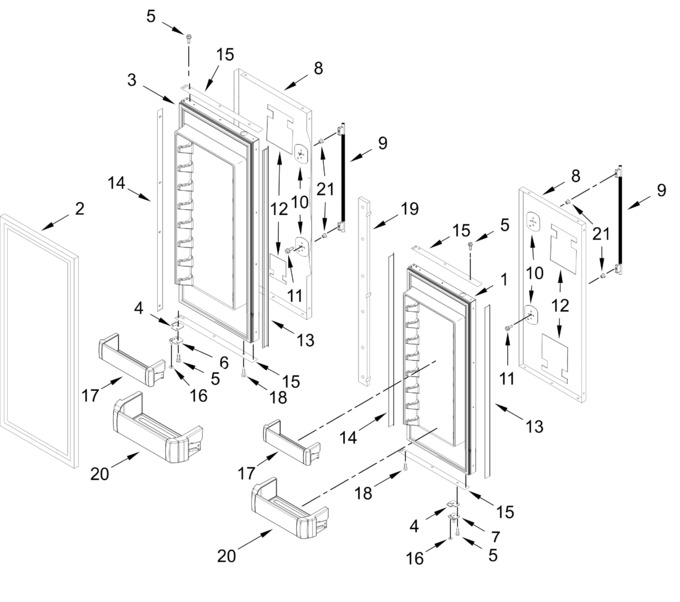

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10651466		Left Door Assembly (includes Door Gasket)		Appelez-nous	-
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 321.38
3	W11819019		Right Door Assembly (includes Door Gasket)   (Replaces: W11779691)		Appelez-nous	-
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10273369		Hinge Assembly, Bottom (left Hand)				$ 41.21
7	W10273367		Hinge Assembly, Bottom (right Hand)				$ 41.27
8	W11818994		Skin, Door (black Ore)   (Replaces: W11737839)		Appelez-nous	-
9	W11777492		Handle, Door (black Ore)   (Replaces: W11737009)				$ 271.05
10	W10127710		Plate, Handle Door			Immediately	$ 25.94
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
12	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 303.66
14	W10600734		Spacer, Door Edge (hinge Side)				$ 297.16
15	W10535347		Spacer, Door (top And Bottom)				$ 165.29
16	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 11.76
17	W10529449		Bin, Door (shallow)				$ 274.07
18	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
19	W11590867		Mullion Assembly				$ 152.85
20	W10578289		Bin, Door (gallon)				$ 303.47
21	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87

    View Diagram in Separate Window       Print Part List
