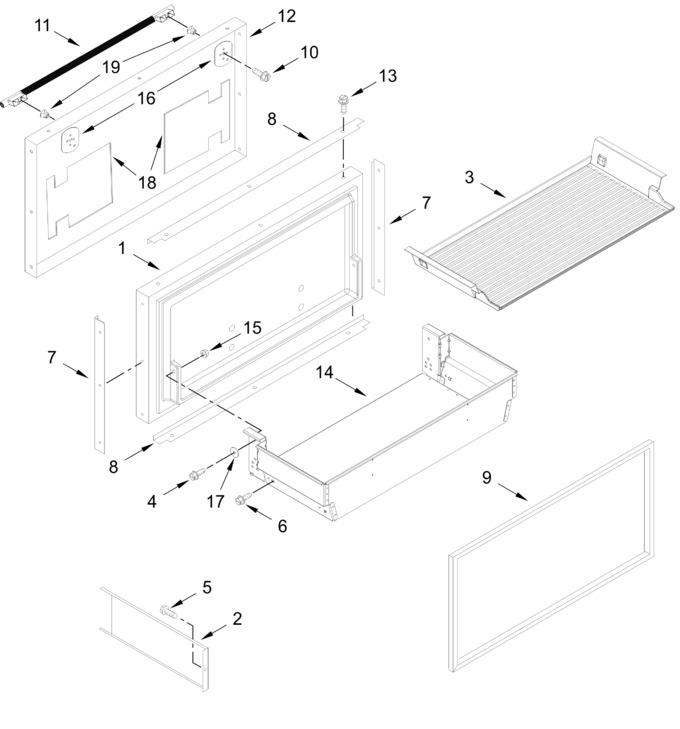

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827065		Door, Freezer (stainless, Includes Door Gasket)   (Replaces: W10562030)		Appelez-nous	-
2	W10600711		Divider, Basket		Appelez-nous	-
3	W10665412		Mat, Basket		Appelez-nous	-
4	W10761334		Screw				$ 13.00
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	W10109030		Screw				$ 15.35
7	W10609690		Spacer, Door Edge (side)		Appelez-nous	-
8	W10609689		Spacer, Door Edge (top And Bottom)				$ 148.09
9	W11625085		Gasket, Door (grey)   (Replaces: W10609687)			Immediately	$ 319.38
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
11	W11784344		Handle Assembly   (Replaces: W11737008)		Appelez-nous	-
12	W11818993		Skin, Fc Door (black Ore)   (Replaces: W11737838)		Appelez-nous	-
13	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
14	W10774208		Basket Assembly, Freezer				$ 442.92
15	W10771111		Nut			Immediately	$ 20.25
16	W10127710		Plate, Handle Door			Immediately	$ 25.94
17	W10001190		Washer				$ 8.80
18	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
19	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
