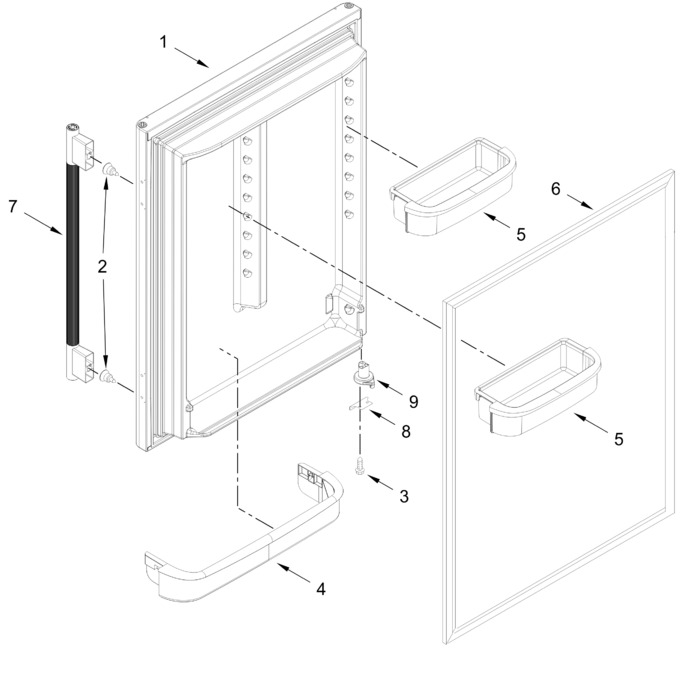

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11826500 | Door, Refrigerator (stainless) (Replaces: W11789187) |
|
- | |||||
| 2 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 3 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 4 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 101.61 | ||||
| 5 | W11808095 | Bucket, Door (medium) (Replaces: W11778553) |
|
$ 52.61 | |||||
| 6 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 314.16 | ||||
| 7 | W11808099 | Handle, Door (stainless) (Replaces: W11775245) |
|
- | |||||
| 8 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 9 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 |
