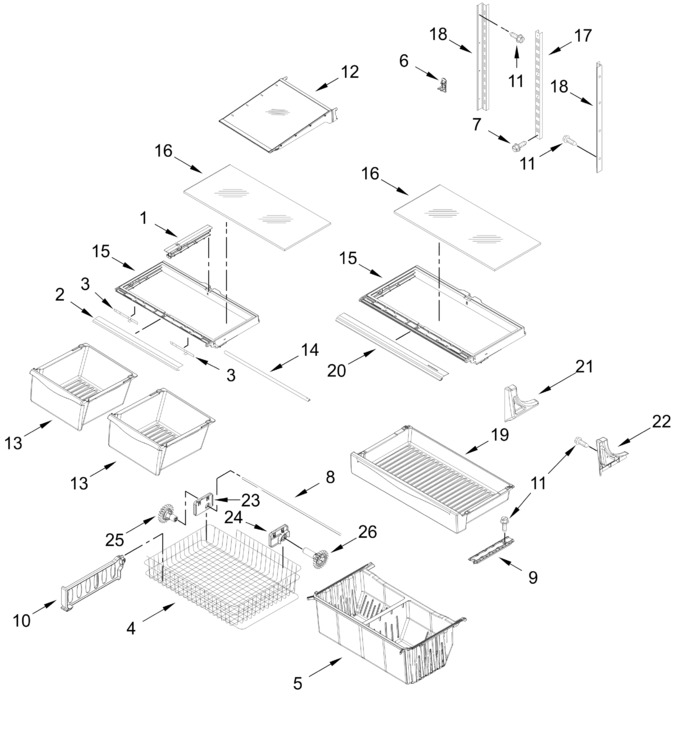

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: W10671238)			Immediately	$ 118.46
2	WPW10231343		Trim, Crisper   (Replaces: W10231343)			Immediately	$ 99.65
3	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
4	W11281084		Basket, Freezer (upper)   (Replaces: W11115252)		Appelez-nous	-
5	W11127323		Bin, Lower   (Replaces: W11028627)			Immediately	$ 137.42
6	WP67001716		Hook, Ladder   (Replaces: 12531802)			Immediately	$ 11.14
7	W10215666		Screw				$ 9.53
8	W10802339		Shaft, Rack				$ 104.17
9	WP67001719		Track, Deli Drawer   (Replaces: 12531901)			Immediately	$ 8.99
10	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	W11808096		Shelf, Stationary   (Replaces: W11779760)		Appelez-nous	-
13	W11808098		Pan, Crisper   (Replaces: W11779060)				$ 85.05
14	WP12227303WD		Brace, Crisper Cover   (Replaces: 12227303WD)				$ 111.25
15	W10858393		Frame, Crisper   (Replaces: W10671241)			Immediately	$ 164.24
16	W11808097		Glass, Crisper/pantry   (Replaces: W11783350)				$ 214.92
17	W10273463		Ladder, Center				$ 29.61
18	W10251969		Ladder, Side				$ 31.44
19	W11808100		Pan, Pantry   (Replaces: W11779062)				$ 181.06
20	W10656986		Trim, Pantry Front				$ 124.12
21	WP67001721		Support, Pantry (left Hand)   (Replaces: 12531001)			Immediately	$ 8.70
22	WP67001722		Support, Pantry (right Hand)   (Replaces: 12531002)			Immediately	$ 8.93
23	W10348259		Mount, Gear (left Hand)				$ 89.87
24	W10348260		Mount, Gear (right Hand)				$ 89.90
25	WPW10474716		Gear, Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
26	WPW10474715		Gear, Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
