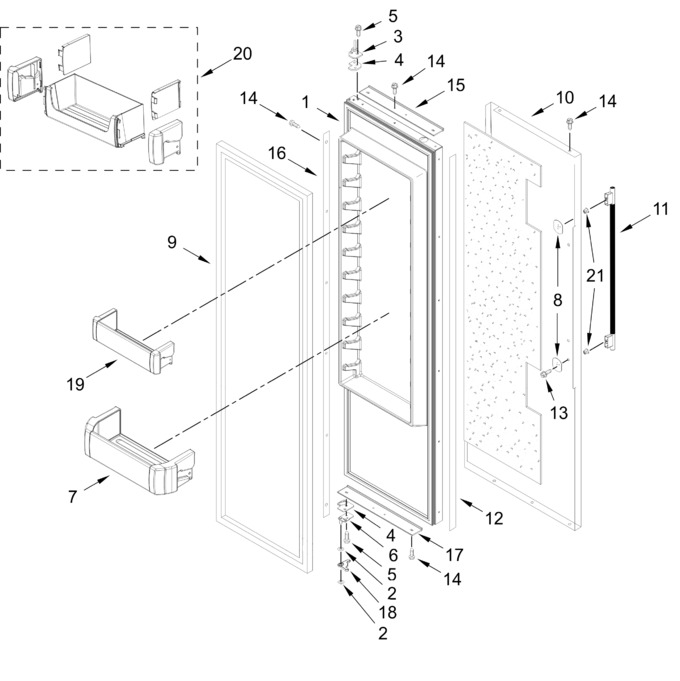

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633394		Door, Refrigerator   (Replaces: W11576687)			Immediately	$ 1,379.28
2	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 10.58
3	W11724512		Leaf Assembly, Hinge (top)   (Replaces: 2266854)				$ 281.25
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom			Immediately	$ 81.91
7	W11627397		Bin, Gallon Door   (Replaces: W11408930)				$ 167.03
8	W10127710		Plate, Handle Door			Immediately	$ 23.35
9	W11625077		Gasket, Door (grey)   (Replaces: W10760886)				$ 347.32
10	W11819000		Skin, Rc Door (stainless)   (Replaces: W11737550)				$ 551.15
11	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 243.95
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
14	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
15	W10761897		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761937		Spacer, Door Skin (bottom)		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
19	W11627398		Bin, Shallow Door   (Replaces: W11408938)				$ 165.61
20	W11627396		Bin Assembly, Top Door   (Replaces: W11610618)				$ 166.63
21	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 7.98
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
