Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

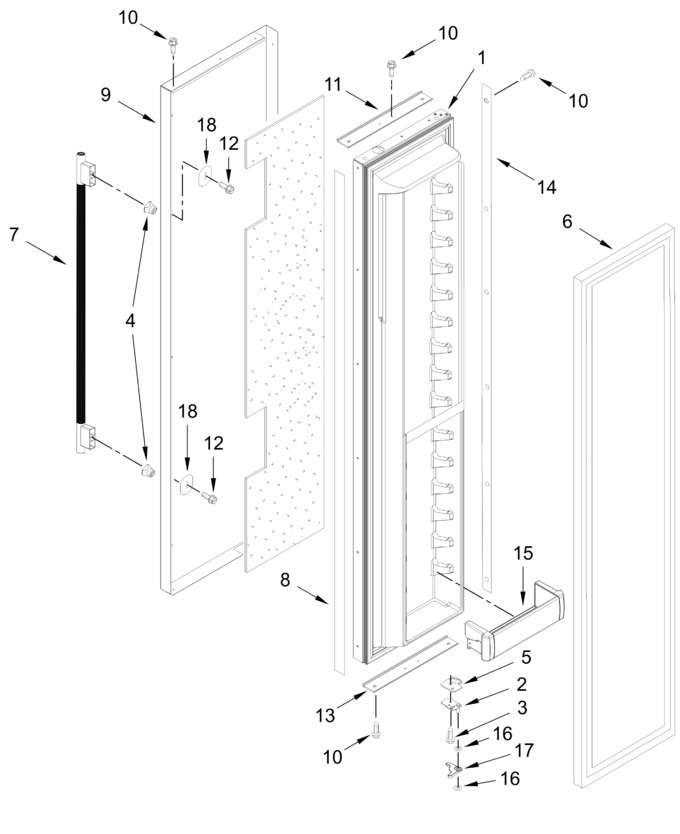

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633132		Door, Freezer   (Replaces: W11570423)		Appelez-nous	-
2	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 56.76
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
4	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 7.98
5	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 117.33
6	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 349.95
7	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 243.95
8	W10758113		Spacer, Handle Side Door		Appelez-nous	-
9	W11819017		Skin, Fc Door (stainless)   (Replaces: W11737553)		Appelez-nous	-
10	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
11	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
12	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
13	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
14	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
15	W11627399		Bin, Shallow Door   (Replaces: W11408940)				$ 164.92
16	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 10.58
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
18	W10127710		Plate, Handle Door			Immediately	$ 23.35
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
