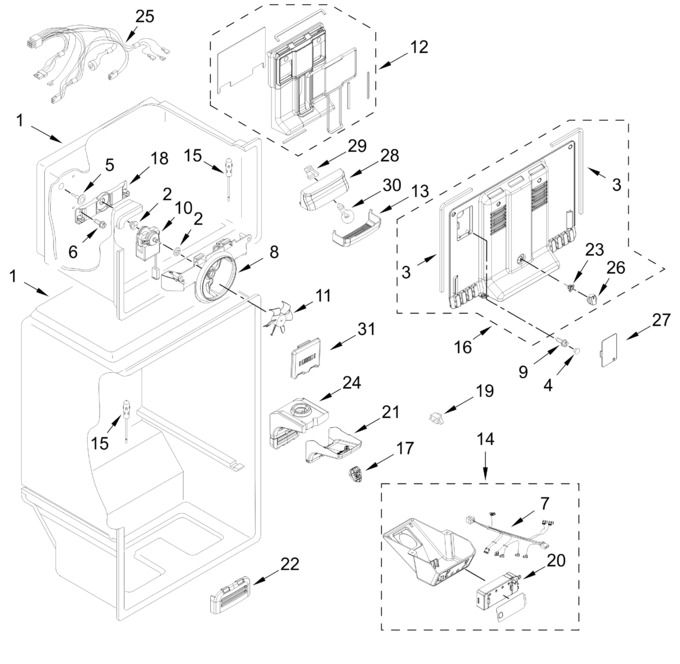

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI5B043898161B9E887C9B86F7C890BB1B | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 95.69 | ||||
| 4 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 9.88 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W11436564 | Wire Assembly, Control Box (Replaces: W11203360) |
|
Immediately | $ 76.11 | ||||
| 8 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 98.07 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 107.61 | ||||
| 12 | W11807622 | Plenum Assembly, Evaporator (Replaces: W11756600) |
|
- | |||||
| 13 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 14 | W11807620 | Control Box Assembly (Replaces: W11769342) |
|
$ 281.07 | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 16 | W11807623 | Cover Assembly, Evaporator (Replaces: W11750881) |
|
- | |||||
| 17 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 42.63 | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 24.73 | ||||
| 20 | W11807621 | Control, Electronic (Replaces: W11769334) |
|
- | |||||
| 21 | W11256504 | Cover, Air Diffuser (Replaces: W10705209) |
|
$ 89.12 | |||||
| 22 | W10638176 | Cup, Air Diffuser |
|
$ 109.60 | |||||
| 23 | W11807625 | Damper, Fc Air Control (Replaces: W11760155) |
|
- | |||||
| 24 | W11788430 | Air Diffuser Assembly (Replaces: W11770267) |
|
- | |||||
| 25 | W11562214 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W11314499) |
|
Immediately | $ 96.83 | ||||
| 26 | W11807624 | Knob, Fc Air Control (Replaces: W11750995) |
|
- | |||||
| 27 | W11341621 | Cover, Hole |
|
- | |||||
| 28 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 29 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 30 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 29.29 | ||||
| 31 | 2321148 | Housing, Thermistor |
|
- |
