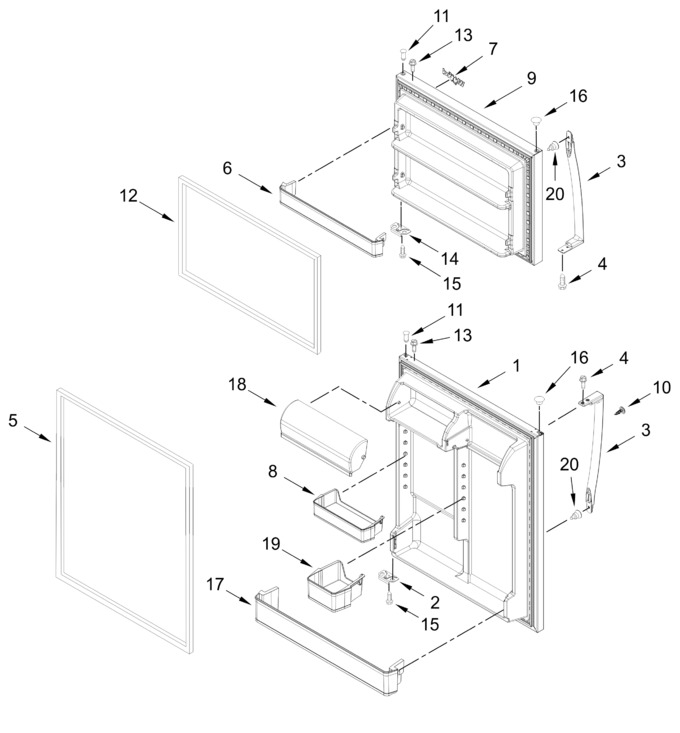

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778554		Refrigerator Door, Stainless (includes Door Gasket)				$ 89.63
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
3	W10837029		Handle, Door (stainless)   (Replaces: W10653471)			Immediately	$ 213.26
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W11784834		Gasket, Door (grey)   (Replaces: W11030683)			Immediately	$ 223.35
6	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
8	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 56.49
9	W11778552		Freezer Door, Stainless (includes Door Gasket)				$ 143.88
10	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
11	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 14.81
12	W11574983		Gasket, Door (grey)   (Replaces: W11030682)				$ 92.37
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	W10276642		Screw   (Replaces: 8533904)				$ 6.41
16	WP2254517		Plug, Hole (grey)   (Replaces: 2254517)			Immediately	$ 24.34
17	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 56.49
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	W11807375		Refrigerator Door Bin (short)   (Replaces: W11750604)				$ 56.49
20	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
