SELECT A DIAGRAM

Burner Box Parts


Chassis Parts

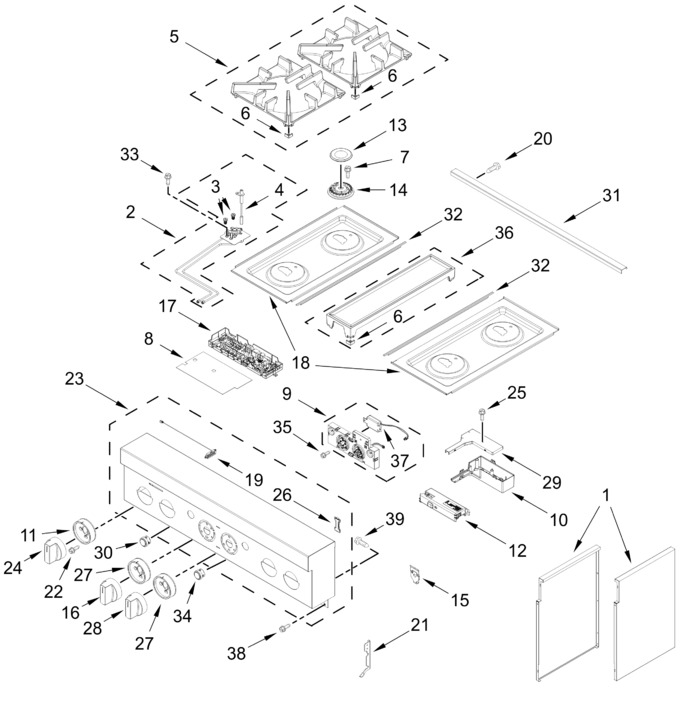

Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Left Cabinet Side   (Replaces: W11106881)				$ 377.72
2	W11333305		Orifice Holder Assembly   (Replaces: W10892793)				$ 112.85
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 21.13
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 354.90
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 11.45
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11492271		User Interface   (Replaces: W11436325)				$ 516.55
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 44.36
12	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 161.90
13	W11328971		Cap, Burner (black, Set Of 4)   (Replaces: W11121391)				$ 156.06
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W11496092)				$ 106.21
17	W11335270		Manager, Appliance (powermax)   (Replaces: W11100264)				$ 422.33
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 451.81
19	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
20	7101P33860		Screw		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11509770		Screw   (Replaces: W11328357)				$ 12.81
23	W11289589		Panel, Console   (Replaces: W10878251)				$ 645.95
24	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 47.24
25	7101P62460		Screw		Appelez-nous	-
26	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 98.42
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 25.22
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 106.21
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
31	W11156414		Trim, Island				$ 234.34
32	W10271524		Trim, T-strip (black)				$ 191.11
33	7101P42660		Screw		Appelez-nous	-
34	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W11515366		Grate Filler Kit   (Replaces: W11291175)				$ 228.58
37	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 72.84
38	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
39	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARI97EE49875860764C24B1F1C761487B6B		(right)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 68.35
	W11333303		Panel, Right Cabinet Side   (Replaces: W11106880)				$ 379.27
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11620688		Orifice Holder Assembly   (Replaces: W11505833)		Appelez-nous	-
	W11238756		Igniter			Immediately	$ 61.16
	W11333312		Panel, Right Cooktop   (Replaces: W11038253)				$ 427.73
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-
	W11333309		Orifice Holder Assembly   (Replaces: W10892730)				$ 110.66
	W10892440		Orifice, Main (7.2k)				$ 89.87
	W11333306		Orifice Holder Assembly   (Replaces: W10892494)			Immediately	$ 115.18
	W10892418		Orifice, Main (15.4k)			Immediately	$ 92.73
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 67.52
	ARI8EE4F5E59D536F62986D20F6E6C7927B		(left Front, Left Rear, Right Front)		Appelez-nous	-
	W10892429		Orifice, Simmer (2.0k)				$ 89.87
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 206.51
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
