SELECT A DIAGRAM
Burner Box Parts
Chassis Parts
Cooktop, Burner And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:

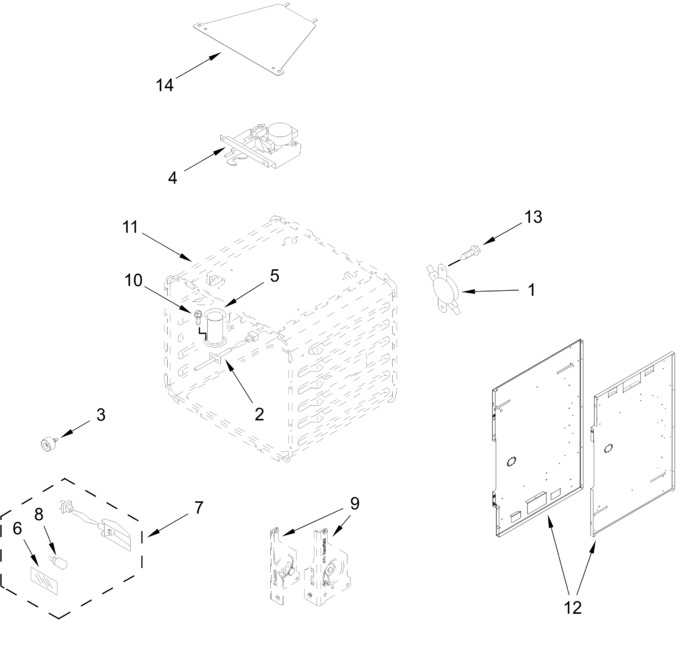

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 143.11 | ||||
| 3 | WPW10351278 | Bumper And Screw (Replaces: W10351278) |
|
$ 9.91 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 294.89 | ||||
| 5 | W11318343 | Tube, Vent (Replaces: W11290663) |
|
$ 94.89 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 7 | W11233684 | Oven Light Assembly (Replaces: W11223932) |
|
$ 100.20 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 9 | ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 | Receiver, Hinge (not Serviced) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 11 | ARID977495C9905E1411E0312A526DED125 | Liner, Oven (not Serviced) |
|
- | |||||
| 12 | W11750310 | Retainer, Left Side Chassis (Replaces: W11683297) |
|
- | |||||
| 13 | 7101P42660 | Screw |
|
- | |||||
| 14 | W10160858 | Cover, Latch |
|
$ 69.25 | |||||
| W11661177 | Insulation, Wrap (30 In) (Replaces: W10282810) |
|
$ 146.25 | ||||||
| W11688396 | Insulation, Back (30 In) (Replaces: W10282816) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11750312 | Retainer, Right Side Chassis (Replaces: W11683296) |
|
- | ||||||
| WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.52 |
