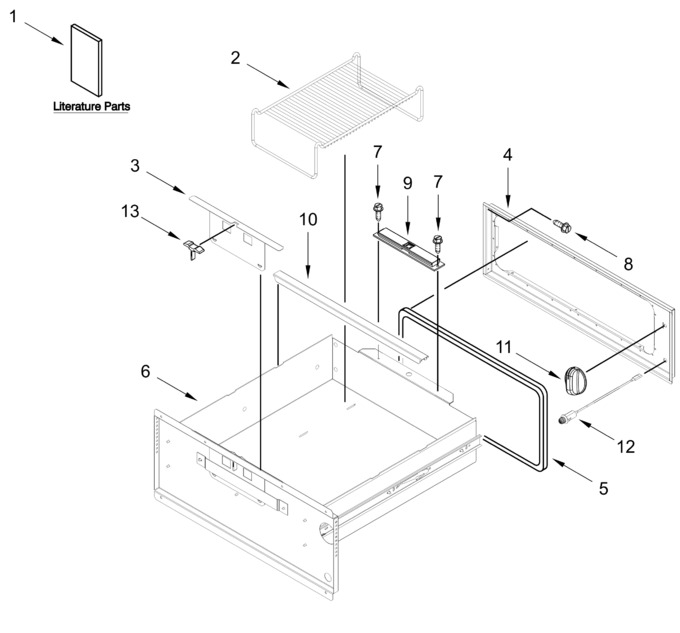

Control Panel And Drawer Parts
Internal Warming Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | 8273277 | Rack, Warming Drawer |
|
$ 99.80 | |||||
| 3 | W10162376 | Slide, Vent |
|
$ 96.82 | |||||
| 4 | W10515383 | Panel, Front |
|
$ 130.82 | |||||
| 5 | W10164998 | Gasket, Drawer |
|
$ 36.60 | |||||
| 6 | WP9763646 | Drawer Assembly (Replaces: 9763646) |
|
Immediately | $ 462.79 | ||||
| 7 | 7101P37660 | Screw |
|
- | |||||
| 8 | 7101P43460 | Screw |
|
- | |||||
| 9 | W10035910 | Magnet |
|
$ 181.67 | |||||
| 10 | W10409138 | Rail, Pan |
|
Immediately | $ 104.96 | ||||
| 11 | W10274390 | Knob, Thermostat |
|
$ 54.63 | |||||
| 12 | W10489562 | Light, Indicator |
|
$ 91.92 | |||||
| 13 | 9763125 | Grip, Vent |
|
$ 72.07 | |||||
| ARI55908F6486B7F2F2D34F1AC776860542 | Custom Panel Hardware Parts Not Illustrated |
|
- | ||||||
| 9763644 | Indicator Clear Lens |
|
- | ||||||
| ARI5DA716665E3DE88E1565E852C73009FF | (front Frame To Cabinet) |
|
- | ||||||
| W11755252 | Owners Manual |
|
- | ||||||
| 4456861 | Spacer, Lens |
|
$ 6.66 | ||||||
| W11773159 | Stud (Replaces: W11687274) |
|
$ 26.87 | ||||||
| W11607071 | Washer (Replaces: W11501149) |
|
- | ||||||
| W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | |||||
| WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 |
