Control Panel And Drawer Parts

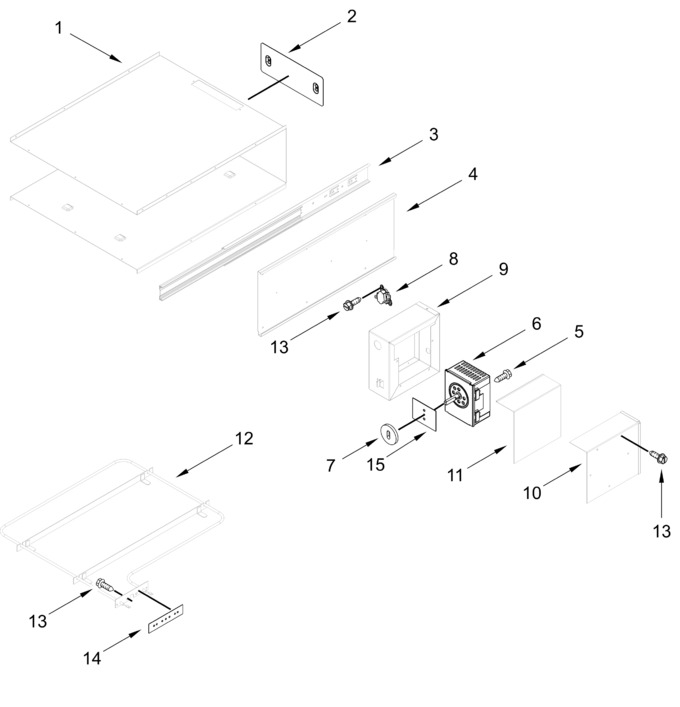

Internal Warming Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10684523 | Wrapper |
|
- | |||||
| 2 | W10118073 | Shield, Heat |
|
- | |||||
| 3 | WPW10188461 | Slide Assembly (Replaces: W10188461) |
|
Immediately | $ 121.53 | ||||
| 4 | W10299387 | Wall, Cavity (left) |
|
- | |||||
| 5 | 7101P30960 | Screw |
|
- | |||||
| 6 | W11708324 | Control (Replaces: W10121337) |
|
$ 165.42 | |||||
| 7 | W10117362 | Gasket, Control |
|
- | |||||
| 8 | 9763126 | Fuse, Thermal |
|
$ 85.04 | |||||
| 9 | 9763122 | Enclosure, Electric |
|
- | |||||
| 10 | W10182072 | Cover, Enclosure (Replaces: 9763121) |
|
$ 54.23 | |||||
| 11 | W10182072 | Gasket, Enclosure (Replaces: W10117363) |
|
$ 54.23 | |||||
| 12 | W10751753 | Element, Heating |
|
- | |||||
| 13 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 14 | W10118049 | Seal, Heating Element |
|
- | |||||
| 15 | W10118113 | Seal, Switch |
|
- | |||||
| W10131847 | Sensor, Sealed |
|
$ 229.51 | ||||||
| 9762307 | Wall, Cavity (right) |
|
$ 78.87 | ||||||
| WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10129043 | Harness, Main |
|
$ 293.02 | ||||||
| W10129023 | Cord, Power |
|
- | ||||||
| 4452601 | Relief, Strain |
|
- |
