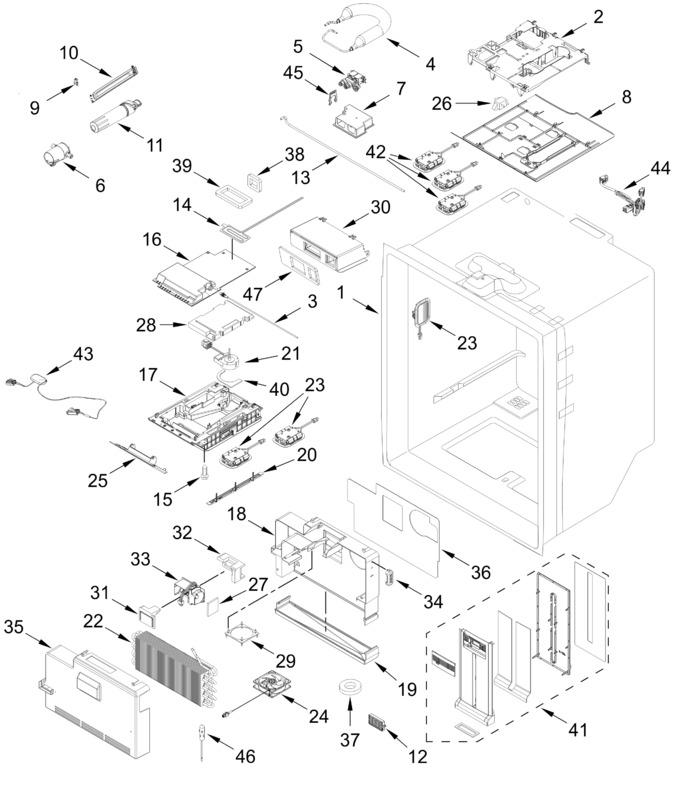

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11482035 | Housing, Water System (Replaces: W11281629) |
|
$ 103.37 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W11613057) |
|
Immediately | $ 118.24 | ||||
| 4 | W11482382 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W11296598) |
|
Immediately | $ 154.12 | ||||
| 5 | W11803379 | Valve, Dual Water (Replaces: W11770814) |
|
Immediately | $ 172.38 | ||||
| 6 | W11482384 | Housing, Water Filter (Replaces: W11293954) |
|
Immediately | $ 108.97 | ||||
| 7 | W11391457 | Enclosure, Water Valve |
|
$ 54.77 | |||||
| 8 | W10754145 | Cover, Waterbox |
|
Immediately | $ 94.45 | ||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | W10754143 | Door, Filter Access |
|
$ 115.82 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W11658811) |
|
$ 88.45 | |||||
| 14 | W11226501 | Heater, Fill Tube (Replaces: W10820065) |
|
Immediately | $ 136.07 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 157.86 | ||||
| 17 | W11605505 | Icebox Assembly, Foamed (Replaces: W11547437) |
|
$ 320.10 | |||||
| 18 | W11435997 | Enclosure, Evaporator (Replaces: W10503486) |
|
$ 229.19 | |||||
| 19 | W11457241 | Pan, Drain (Replaces: W10525237) |
|
Immediately | $ 144.87 | ||||
| 20 | W10785113 | Trim, Icebox |
|
- | |||||
| 21 | W10846539 | Fan, Icebox (Replaces: W10833801) |
|
Immediately | $ 328.41 | ||||
| 22 | W11578026 | Evaporator Assembly, Rc Dual (Replaces: W11395822) |
|
Immediately | $ 382.61 | ||||
| 23 | W11484836 | Light Module, Led (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 24 | W11087438 | Motor, Evaporator Fan (includes Wire Harness) (Replaces: W10799016) |
|
Immediately | $ 163.57 | ||||
| 25 | W11645701 | Assembly, Icebox Fascia (includes Heater) (Replaces: W11504341) |
|
Immediately | $ 112.05 | ||||
| 26 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 27 | W10470981 | Gasket, Damper |
|
$ 26.47 | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | WPW10389152 | Support, Fan (Replaces: W10389152) |
|
Immediately | $ 25.25 | ||||
| 30 | W11126056 | Adapter Assembly, Icebox (Replaces: W10749701) |
|
Immediately | $ 116.90 | ||||
| 31 | W11225849 | Retainer, Damper (Replaces: W10503491) |
|
Immediately | $ 23.74 | ||||
| 32 | W11230117 | Support, Damper (Replaces: W10503492) |
|
$ 154.84 | |||||
| 33 | WPW10248595 | Damper, Electronic Control (Replaces: W10248595) |
|
Immediately | $ 204.03 | ||||
| 34 | W11238397 | Cover, Thermistor (Replaces: W10438957) |
|
Immediately | $ 23.33 | ||||
| 35 | W11256332 | Cover, Rc Evaporator (Replaces: W10738349) |
|
$ 256.18 | |||||
| 36 | W11435996 | Gasket, Evaporator Enclosure (Replaces: W10465948) |
|
$ 29.45 | |||||
| 37 | W10505273 | Gasket, Drain Tube |
|
- | |||||
| 38 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 39 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 40 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 41 | W10860238 | Air Tower Assembly (Replaces: W10749499) |
|
$ 300.72 | |||||
| 42 | W11484839 | Harness, Led Wire (includes Led Lights) (Replaces: W11234022) |
|
Immediately | $ 186.29 | ||||
| 43 | W10673048 | Jumper, Fascia Heater |
|
$ 127.58 | |||||
| 44 | W11369503 | Wire Assembly, Jumper |
|
$ 72.29 | |||||
| 45 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 46 | W10316760 | Thermistor, Evaporator Fan (Replaces: W10323459) |
|
Immediately | $ 81.86 | ||||
| 47 | W11747986 | Gasket, Adapter (Replaces: W11672619) |
|
- | |||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| W11306923 | Wire Assembly, Dual Valve |
|
$ 126.93 | ||||||
| W11298842 | Wire Assembly, Ice Box |
|
Immediately | $ 137.06 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11506619 | 8 Nk Ms 00 |
|
Immediately | $ 25.88 | |||||
| W11504450 | 4/1.8 Nr Ms 00 |
|
Immediately | $ 46.52 | |||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- | ||||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- |
