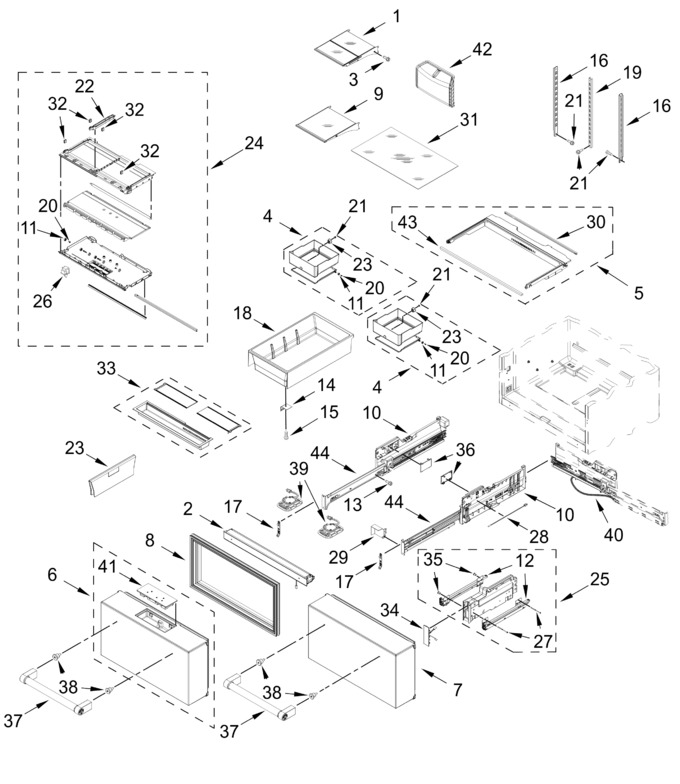

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10737428		Shelf Assembly, Tuck   (Replaces: W10737428)			Immediately	$ 395.52
2	W11484637		Secondary Mullion (grey)   (Replaces: W11374500)		Appelez-nous	-
3	W11400994		Screw   (Replaces: W10325002)				$ 13.44
4	W11028624		Crisper Assembly   (Replaces: W10801137)				$ 238.15
5	W11561069		Cover Assembly, Crisper   (Replaces: W10847515)				$ 218.82
6	W10815669		Pantry Door, Stainless (left Hand, Includes Door Gasket)   (Replaces: W10733263)				$ 1,003.95
7	W10815678		Pantry Door, Stainless (right Hand, Includes Door Gasket)   (Replaces: W10738904)				$ 1,042.44
8	W10832386		Gasket, Pantry Door (grey)   (Replaces: W10685868)				$ 337.73
9	W10807832		Shelf Assembly, Fixed   (Replaces: W10756314)				$ 285.74
10	W11397195		Adaptor, Pantry (left Hand)   (Replaces: W11294509)			Immediately	$ 263.67
11	W10788795		Roller				$ 20.60
12	W11242545		Glide, Pantry Adaptor (center, Left Side)				$ 292.19
13	WP98006631		Screw   (Replaces: 98006631)				$ 7.30
14	W10704335		Clip, Drawer Body				$ 15.34
15	W10664603		Screw				$ 14.47
16	W11819951		Ladder, Side   (Replaces: W10467460)		Appelez-nous	-
17	W10732765		Clip, Glide Door				$ 18.74
18	W10730610		Drawer, Pantry				$ 144.28
19	W10467461		Ladder, Center			Immediately	$ 52.31
20	67006692		Screw   (Replaces: 12991401)				$ 10.79
21	WPW10666373		Screw   (Replaces: W10666373)				$ 20.86
22	W10638123		Guide, Crisper				$ 292.10
23	W11728927		Spacer, Crisper Handle   (Replaces: W11694798)				$ 13.72
24	W11215631		Rc Floor Assembly				$ 238.05
25	W11294548		Adapter, Pantry Center			Immediately	$ 121.34
26	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
27	W10737605		Screw				$ 10.55
28	W11168403		Thermistor   (Replaces: W10549991)			Immediately	$ 126.61
29	W10711821		Cover, Connector				$ 111.01
30	W10493547		Support, Crisper Rear		Appelez-nous	-
31	W11038526		Glass, Crisper   (Replaces: W10893770)				$ 263.10
32	12702901		Pad, Glide		Appelez-nous	-
33	W11175820		Bin, Secondary Mullion   (Replaces: W10634635)				$ 227.79
34	W10830861		Cover, Mullion (grey)   (Replaces: W10733546)				$ 81.68
35	W10737730		Nut, Rivet				$ 15.14
36	W10731491		Cover, Side Adapter				$ 110.32
37	W11499659		Handle, Door (stainless)   (Replaces: W11339146)				$ 182.08
38	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
39	W11483116		Led Light Module   (Replaces: W11228040)			Immediately	$ 21.81
40	W11170612		Harness, Side Adapter   (Replaces: W10512203)			Immediately	$ 90.96
41	WPW10769076		User Interface (stainless)   (Replaces: W10769076)			Immediately	$ 531.08
42	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
43	W10847369		Support, Front				$ 113.01
44	W11242542		Glide, Pantry Adaptor (left Hand)				$ 295.20
	W11242573		Glide, Pantry Adaptor (center, Right Side)				$ 291.31
	ARI975125AF088E40FAF2A48B3F8223E415		(also Order Items 27 And 35)		Appelez-nous	-
	W11409809		Adaptor, Pantry (right Hand)   (Replaces: W11294512)			Immediately	$ 215.59
	W11242573		Glide, Pantry Adaptor (right Hand)   (Replaces: W11242572)				$ 291.31
