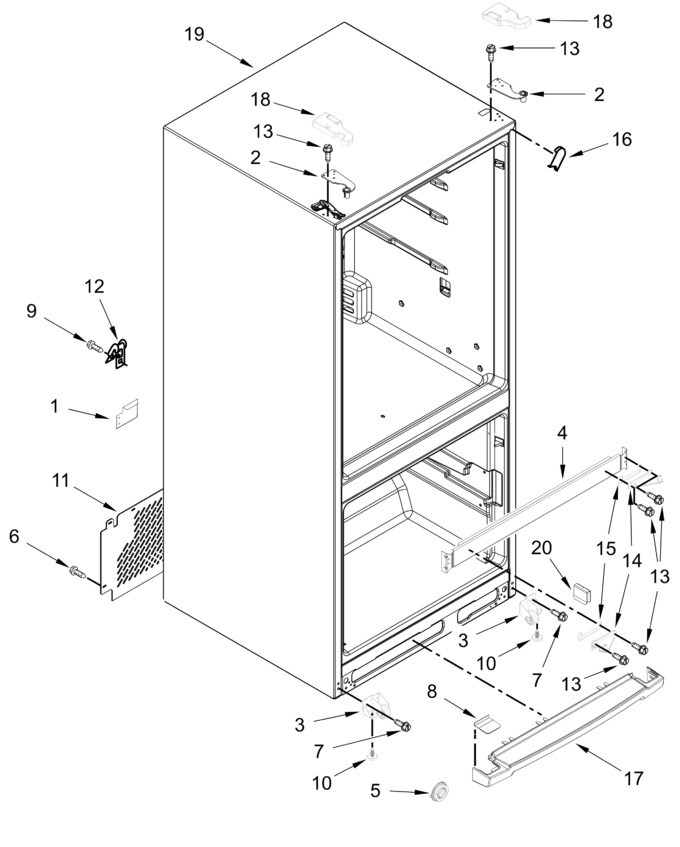

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
2	W10546298		Top Hinge Assembly (left Hand)				$ 63.14
3	WPW10359256		Front Roller Assembly (left Hand)   (Replaces: W10359256)			Immediately	$ 46.65
4	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
5	W10331226		Drum, Toe Grille				$ 42.68
6	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
7	W11544561		Screw   (Replaces: 2152958)				$ 13.28
8	WPW10339257		Cover Toe Grille (white)   (Replaces: W10339257)				$ 76.88
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
10	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.42
11	W11700600		Cover, Unit   (Replaces: W11407731)			Immediately	$ 56.53
12	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 19.91
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
14	W10770878		Hinge Center (left Hand)			Immediately	$ 74.07
15	WPW10450363		Shim, Center Hinge   (Replaces: W10450363)			Immediately	$ 22.81
16	W11219639		Filler, Corner (white)   (Replaces: W11189128)				$ 10.69
17	WPW10300127		Toe Grille (white)   (Replaces: W10300127)				$ 145.34
18	W10465764		Right Hand (white)				$ 19.36
19	ARIA1BE6BF358E039F0039560B85D40D2C4		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 10.38
	W10465765		Left Hand (white)				$ 18.51
	W11573371		Top Hinge Assembly (right Hand)   (Replaces: W10546299)			Immediately	$ 22.38
	W11417064		Hinge, Center (right Hand)   (Replaces: W10770877)			Immediately	$ 54.66
	WPW10359255		Front Roller Assembly (right Hand)   (Replaces: W10359255)			Immediately	$ 90.58
