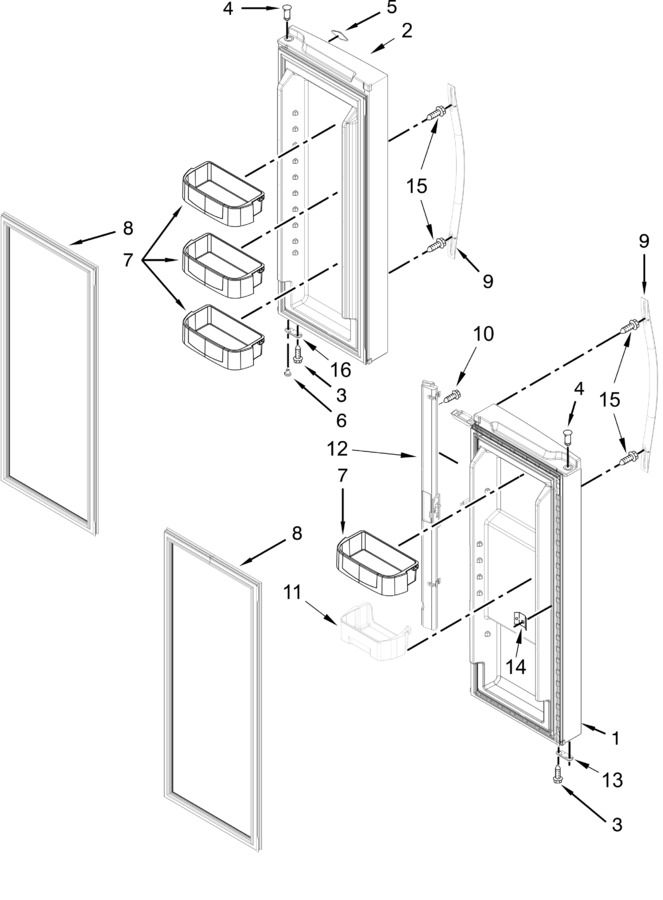

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10721544 | Left Door Assembly, (white, Includes Door Gasket) (Replaces: W10721544) |
|
$ 1,021.89 | |||||
| 2 | LW10721540 | Right Door Assembly, (white, Includes Door Gasket) (Replaces: W10721540) |
|
$ 1,017.04 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble, Top (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 312.32 | ||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W11101973) |
|
Immediately | $ 190.44 | ||||
| 10 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 11 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 64.79 | ||||
| 12 | WPW10624451 | Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 132.60 | ||||
| 13 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 14 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 15 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 |
