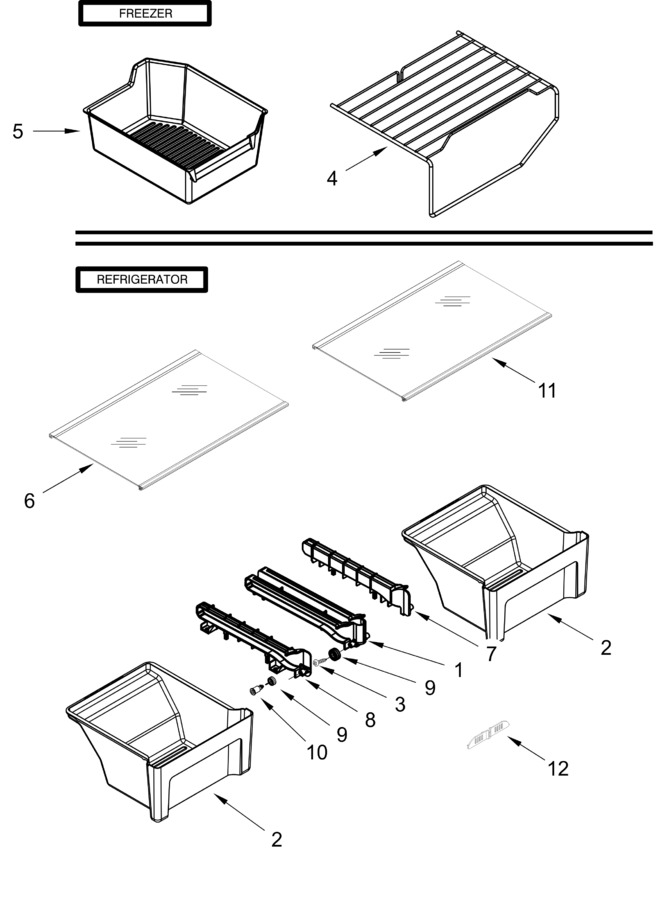

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Rail, Center Track (Replaces: W11516190) |
|
Immediately | $ 28.90 | ||||
| 2 | W10797460 | Assembly, Crisper Pan |
|
- | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 4 | W11678256 | Shelf, Ice Tray (Replaces: W10675340) |
|
$ 131.10 | |||||
| 5 | W11625904 | Pan, Ice Cube (Replaces: W10898951) |
|
Immediately | $ 61.05 | ||||
| 6 | W11674478 | Shelf Assembly, Refrigerator (Replaces: W11553146) |
|
$ 207.44 | |||||
| 7 | W11818646 | Rail, Track (left Hand) (Replaces: W11812187) |
|
Immediately | $ 27.93 | ||||
| 8 | W11818645 | Rail, Track (right Hand) (Replaces: W11812185) |
|
- | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.17 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 16.11 | ||||
| 11 | W11674475 | Shelf Assembly, Crisper (Replaces: W11553145) |
|
$ 207.39 | |||||
| 12 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 21.11 |
