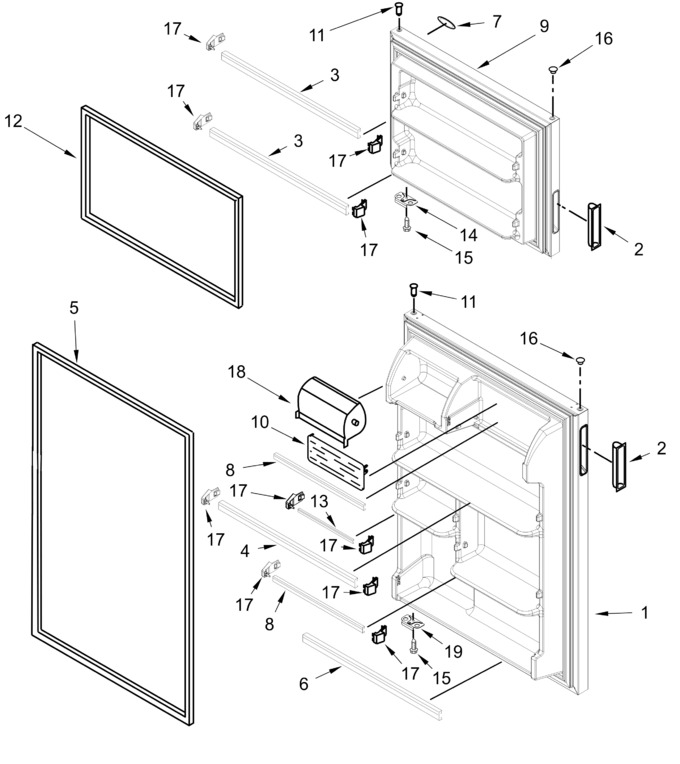

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10798950 | Refrigerator Door, Stainless (includes Door Gasket) (Replaces: W10798950) |
|
$ 756.06 | |||||
| 2 | W10631993 | Handle, Cup (grey) |
|
- | |||||
| 3 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 114.61 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 114.61 | |||||
| 5 | W11240749 | Gasket, Rc Door (black) (Replaces: W10678768) |
|
Immediately | $ 270.62 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 11.07 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 114.61 | ||||
| 9 | LW10798951 | Freezer Door, Stainless (includes Door Gasket) (Replaces: W10798951) |
|
$ 739.99 | |||||
| 10 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 54.28 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 12 | W11229610 | Gasket, Fc Door (black) (Replaces: W10667843) |
|
Immediately | $ 270.62 | ||||
| 13 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 114.61 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 16 | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 47.56 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 |
