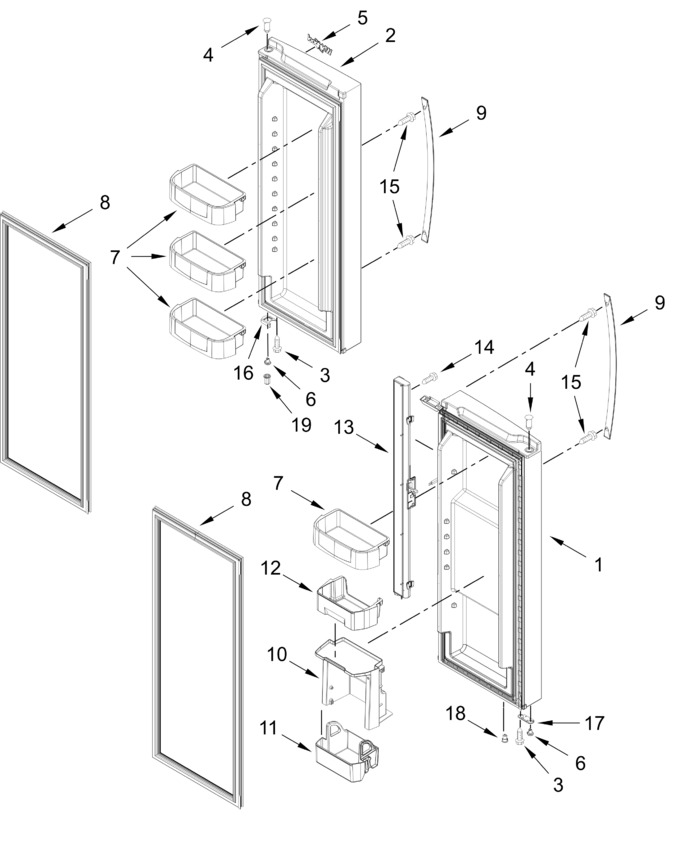

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11654423		Left Door Assembly, (white, Includes Door Gasket)   (Replaces: W11525213)				$ 557.90
2	LW10721540		Right Door Assembly, (white, Includes Door Gasket)   (Replaces: W10721540)				$ 915.34
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 12.56
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.80
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 69.93
8	W10460612		Gasket, Door (beige)   (Replaces: W10353189)			Immediately	$ 281.09
9	W11127179		Handle, Door (white)   (Replaces: W11101973)			Immediately	$ 171.40
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 93.42
11	W11106787		Caddy, Condiment   (Replaces: W10462299)			Immediately	$ 96.28
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 58.31
13	WPW10624451		Mullion Assembly (white)   (Replaces: W10624451)			Immediately	$ 119.34
14	W10854958		Screw   (Replaces: 12990302)				$ 7.11
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 33.25
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
18	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
19	WP67002731		Bushing, Door (black)   (Replaces: 12028601B)			Immediately	$ 7.42
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
	ARIFE26C32C0D260E4F0CD7D243D4292330		(left Hand)		Appelez-nous	-
