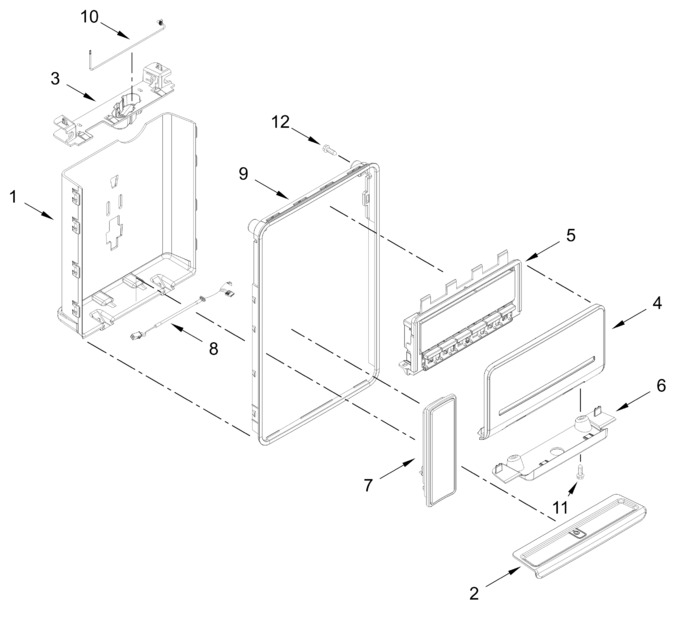

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10300448 | Tray, Drip (white) (Replaces: W10300448) |
|
$ 57.78 | |||||
| 3 | W11616802 | Separator (Replaces: W11586048) |
|
$ 20.73 | |||||
| 4 | W10435575 | Fascia, Sparsh (silver Mirror) |
|
$ 148.08 | |||||
| 5 | W11655738 | User Interface Assembly (Replaces: W11593427) |
|
Immediately | $ 333.64 | ||||
| 6 | W10356029 | Cover, Separator, (chromium Frost) |
|
$ 46.24 | |||||
| 7 | W10433547 | Pad Assembly (white) |
|
$ 292.37 | |||||
| 8 | W10735841 | Dispenser Wire Assembly |
|
$ 152.20 | |||||
| 9 | W10356017 | Ring, Trim |
|
Immediately | $ 57.31 | ||||
| 10 | W11615170 | Tube, Door (includes Spigot) (Replaces: W11531892) |
|
$ 98.31 | |||||
| 11 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 12 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 |
