SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

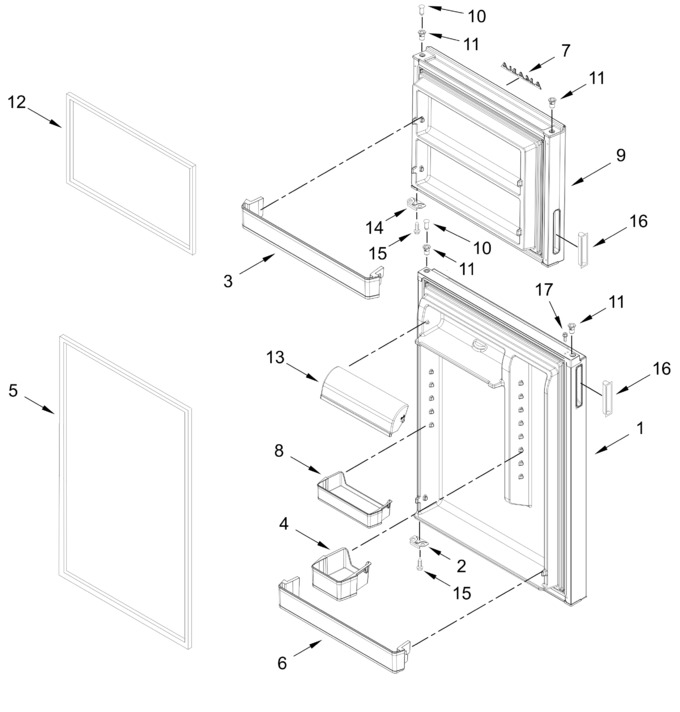

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778544		Door, Refrigerator (stainless, Includes Door Gasket And Handle Cup)				$ 231.07
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 61.93
3	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
4	W11818648		Bin, Door (short)   (Replaces: W11750603)				$ 50.84
5	W11784834		Gasket, Door (grey)   (Replaces: W11030683)			Immediately	$ 201.02
6	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 50.84
7	W11182143		Badge (stainless)   (Replaces: W11046241)				$ 72.24
8	W11818647		Bin, Door (large)   (Replaces: W11750599)				$ 50.84
9	W11778543		Door, Freezer (stainless, Includes Door Gasket And Handle Cup)		Appelez-nous	-
10	WP2254517		Plug, Hinge Hole (grey)   (Replaces: 2254517)			Immediately	$ 21.91
11	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 13.33
12	W11574983		Gasket, Door (grey)   (Replaces: W11030682)				$ 83.13
13	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
16	W11826170		Handle, Cup (gray)   (Replaces: W11753501)		Appelez-nous	-
17	W10276642		Screw   (Replaces: 8533904)				$ 5.77

    View Diagram in Separate Window       Print Part List
