SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

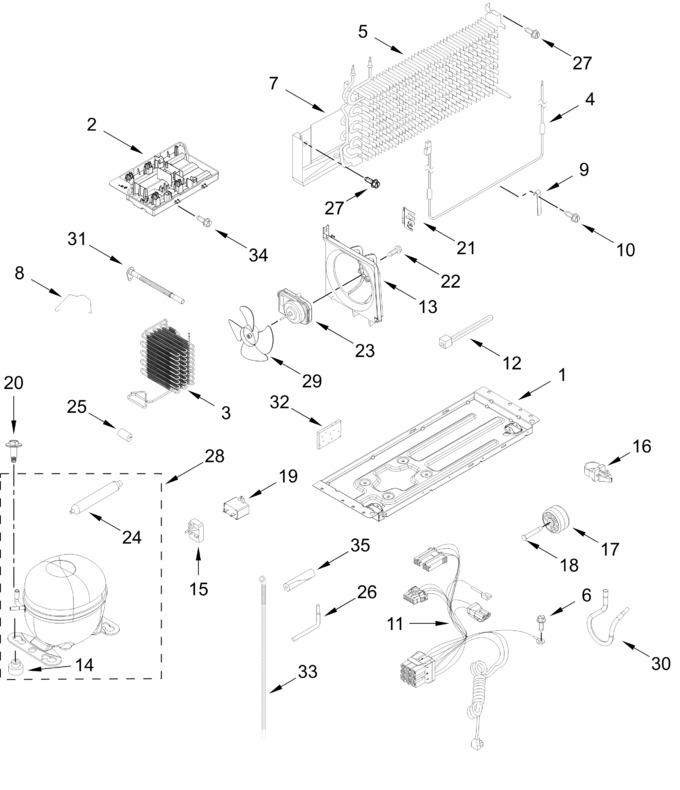

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10624648		Support Plate, Compressor				$ 101.99
2	W10633582		Tray, Evaporator				$ 93.87
3	W11803146		Condenser   (Replaces: W11783741)			Immediately	$ 221.57
4	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 89.77
5	W11562258		Evaporator Assembly   (Replaces: W11488141)			Immediately	$ 220.35
6	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
7	W11562216		Heat Shield   (Replaces: W11377819)				$ 46.55
8	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
9	W11611126		Heat Probe   (Replaces: W11399989)				$ 23.16
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	W11611445		Harness, Unit   (Replaces: W11238433)			Immediately	$ 82.19
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	W11736795		Bracket, Fan   (Replaces: W11438498)			Immediately	$ 71.48
14	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 8.51
15	W11547180		Start Device, Combination (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 45.90
16	2219077		Clip, Harness				$ 64.24
17	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 58.86
20	W11417341		Screw   (Replaces: W10476309)				$ 14.07
21	W11340313		Bracket, Evaporator				$ 75.36
22	W10829281		Screw   (Replaces: W10622701)				$ 13.28
23	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 86.65
24	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
25	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
26	W11661102		Tube, Process   (Replaces: 2174739)				$ 30.46
27	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
28	W11582592		Compressor   (Replaces: W11332034)				$ 398.39
29	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 101.49
30	W11562211		Tube, Suction   (Replaces: W11361071)				$ 21.13
31	W11383479		Extension, Drain Tube			Immediately	$ 34.22
32	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 14.77
33	W10633573		Tube, Drain			Immediately	$ 35.19
34	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
35	2264838		Sleeve				$ 92.28
	ARI4BCECE878077ED002DD1895197EA4975		47 Grams (r600a)		Appelez-nous	-
	W11504419		(8/7 Nr Al 00)			Immediately	$ 35.19
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	W11506623		5 Nk Ms 00			Immediately	$ 22.00
	W11506619		8 Nk Ms 00			Immediately	$ 25.88
	W11504449		4/2 Nr Al 00			Immediately	$ 37.44
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	ARIFE05854D4243D957FF7DF90F52C3AE38		(compressor To Condenser)		Appelez-nous	-
	ARI7EAC8134DAB8FF5AAAE27020D6EE8424		(heat Loop To Condenser)		Appelez-nous	-
	ARI169C38591D7F4AD8FB3D43FAEA44FC75		(charging Tube To Compressor)		Appelez-nous	-
	W11506635		Tube, Charging (1/4 In, Includes Schrader Valve)			Immediately	$ 37.03
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
