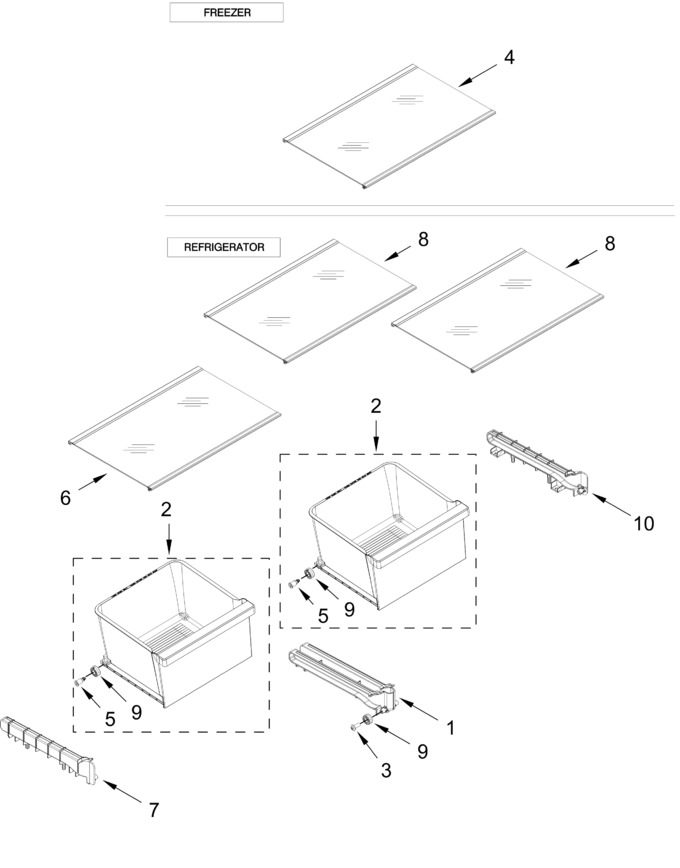

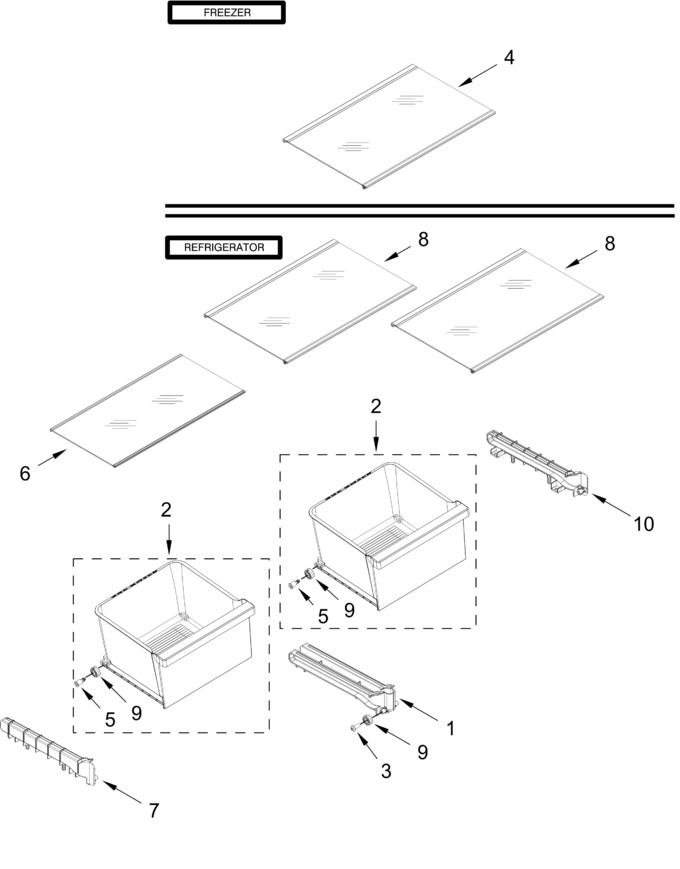

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Rail, Center Track (Replaces: W11516190) |
|
Immediately | $ 32.11 | ||||
| 2 | W11818643 | Pan Assembly, Crisper (half) (Replaces: W11768952) |
|
- | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 4 | W11674479 | Shelf Assembly, Freezer (Replaces: W11553150) |
|
$ 230.29 | |||||
| 5 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 6 | W11674475 | Shelf Assembly, Crisper (Replaces: W11553145) |
|
$ 230.43 | |||||
| 7 | W11818646 | Rail, Track (crisper, Left Hand) (Replaces: W11812187) |
|
Immediately | $ 31.03 | ||||
| 8 | W11674478 | Shelf Assembly, Refrigerator (Replaces: W11553146) |
|
$ 230.49 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 10 | W11818645 | Rail, Track (crisper, Right Hand) (Replaces: W11812185) |
|
- |
