SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

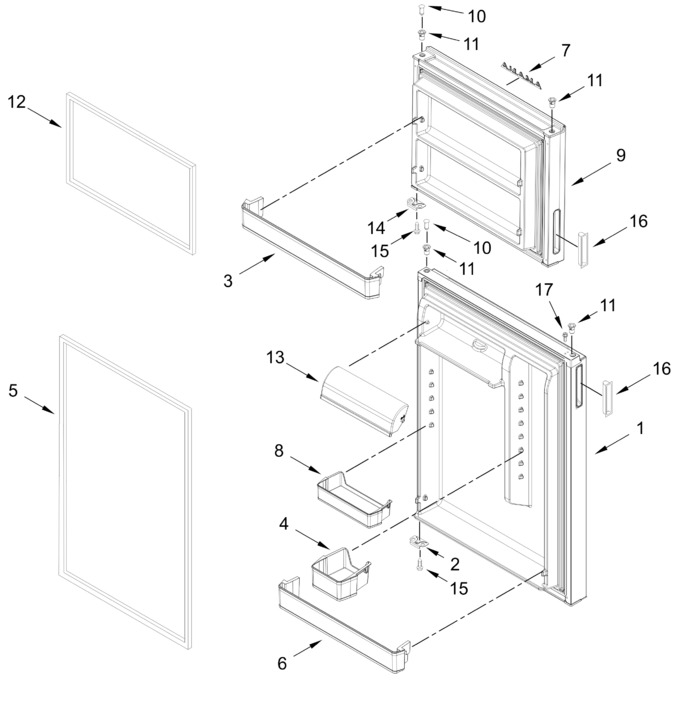

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778536		Refrigerator Door Assembly (white, Includes Door Gasket And Handle Cup)   (Replaces: W11751002)				$ 233.08
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
3	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
4	W11818648		Bin, Door (short)   (Replaces: W11750603)				$ 56.49
5	W10838574		Gasket, Rc Door (white)   (Replaces: W10638676)			Immediately	$ 107.11
6	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 56.49
7	W11428492		Badge (white)   (Replaces: W11046244)				$ 83.57
8	W11818647		Bin, Door (large)   (Replaces: W11750599)				$ 56.49
9	W11778535		Freezer Door (includes Door Gasket And Handle Cup)   (Replaces: W11751011)				$ 197.23
10	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
11	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 12.34
12	W10861499		Gasket, Fc Door (white)   (Replaces: W10638675)			Immediately	$ 98.40
13	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	W11818638		Handle, Cup (white)   (Replaces: W11759456)		Appelez-nous	-
17	W10276642		Screw   (Replaces: 8533904)				$ 6.41

    View Diagram in Separate Window       Print Part List
