Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARIF06CCFE9BD0F0FDB975806FEDA58D816 Cabinet (not Serviced) Appelez-nous -
2 W11490590 Cover, Fill Tube Appelez-nous -
3 2318189 Tray, Filter Drip Special Order $ 148.73

4 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

5 W10860229 Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275) Special Order $ 381.83

6 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 50.68

7 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 43.26

8 W11833015 Trim, Grille Top   (Replaces: W11788313) Appelez-nous -
9 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 270.85

10 2307584 Grommet, Crossover Tube Special Order $ 23.40

11 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 8.63

12 W10121145 Filter, Water Appelez-nous -
13 W11225845 Valve, Solenoid   (Replaces: W10574769) In-Stock Immediately $ 198.88

14 2006841 Ring, Retainer Special Order $ 92.66

15 W11826025 Top Hinge Assembly (left Hand)   (Replaces: W11788257) Appelez-nous -
16 W11755873 Bracket, Filter   (Replaces: W11695780) Special Order $ 80.33

17 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

18 W11830704 Cabinet Trim (silver, Left Side)   (Replaces: W11788283) Appelez-nous -
19 W11830705 Cabinet Trim (silver, Right Side)   (Replaces: W11788285) Appelez-nous -
20 W10619291 Shield, Valve Electrical Appelez-nous -
21 W10004860 Screw In-Stock Immediately $ 15.50

22 W11830698 Wire Assembly, Water Valve   (Replaces: W11787782) Appelez-nous -
23 2215612 Cover, Air Duct Appelez-nous -
24 W11830700 Valve Bracket   (Replaces: W11782184) Appelez-nous -
25 W10691533 Bottom Hinge Assembly (left Hand) Special Order $ 624.95

26 2320559 Support, Valve Special Order $ 88.79

27 W11721628 Screw   (Replaces: W11370632) In-Stock Immediately $ 14.78

28 WPW10188549 Skirt, Grille (black)   (Replaces: W10188549) Special Order $ 144.20

29 00487294 Screw   (Replaces: 487294) Special Order $ 175.09

30 W11739147 Grille, Bottom (black)   (Replaces: W11695787) In-Stock Immediately $ 212.42

31 W10663352 Clip Special Order $ 21.91

32 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

33 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

34 2006617 Bracket, Base Support (rear) Appelez-nous -
35 W11826028 Switch Cover (left/right)   (Replaces: W11813708) Appelez-nous -
36 W10635851 Tube, Filter Outlet Special Order $ 88.57

37 W10780213 Wire Assembly, Switch Special Order $ 130.91

38 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 76.42

39 W11826027 Rocker Switch   (Replaces: W11790436) Appelez-nous -
40 W11678575 Locking Ring (5/16)   (Replaces: W11175631) Special Order $ 14.90

41 W11826104 Installation Block   (Replaces: W11805383) Appelez-nous -
42 2005032 Leveler, Adjustable In-Stock Immediately $ 200.07

43 2005433 Spacer, Door Skin (top) Special Order $ 23.33

44 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

45 W11798413 Heater, Fill Tube   (Replaces: W11771383) Appelez-nous -
46 W11830701 Waterline, Customer Connect   (Replaces: W11783381) Appelez-nous -
47 W11662302 Assembly, Water Inlet Tube   (Replaces: 2314049) Appelez-nous -
48 WP1106508 Gasket, Seal   (Replaces: 1106508) In-Stock Immediately $ 10.43

49 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

50 W11826102 Door Arm Insert (top)   (Replaces: W11788316) Appelez-nous -
W11826024 Top Hinge Assembly (right Hand)   (Replaces: W11788258) Special Order $ 509.51

W11830706 Rocker Switch   (Replaces: W11803611) Appelez-nous -
W11826101 Panel Installation Kit   (Replaces: W11797883) Appelez-nous -
W10860448 Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423) In-Stock Immediately $ 383.00

ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11845457 Template Panels Bir Sxs 42   (Replaces: W11807114) Appelez-nous -
W10691534 Bottom Hinge Assembly (right Hand) In-Stock Immediately $ 655.24

ARI744A39619562C01DE39E694D1CE8F7D9 (freezer) Appelez-nous -
ARIC467EA2065EBD6EE51D04A55E53CAB77 (refrigerator) Appelez-nous -
W11676611 Locking Ring (1/4)   (Replaces: W11175632) Special Order $ 14.89

W11845356 Template Grille Bir   (Replaces: W11807111) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

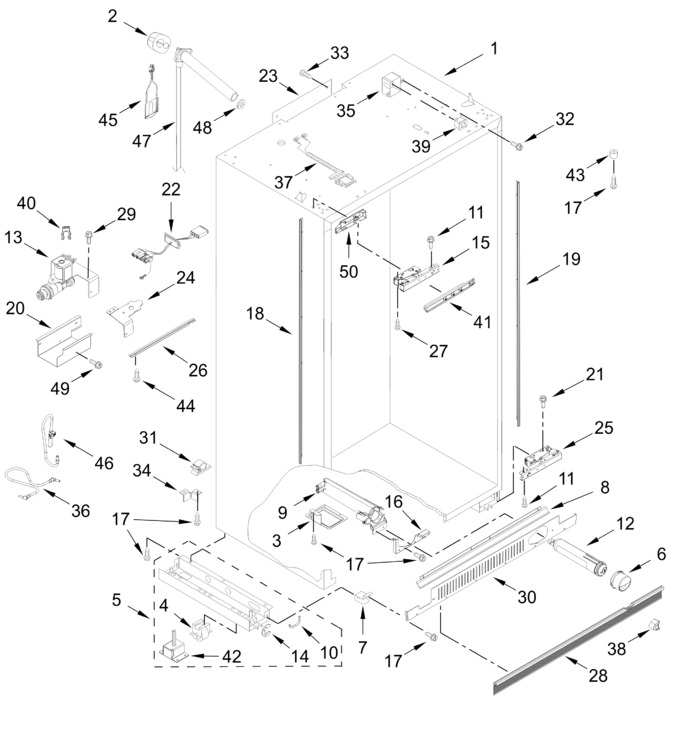

Diagram for KBSN742TPA00
