Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts (not Included)


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

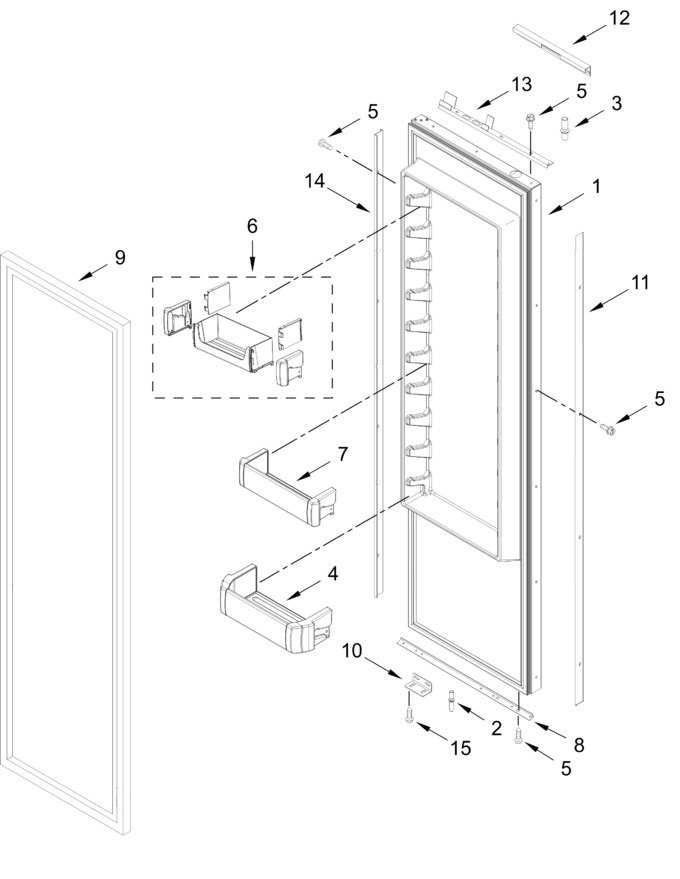

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788278		Refrigerator Door Assembly		Appelez-nous	-
2	W11337869		Pin, Bottom Door				$ 64.91
3	W10234194		Pin, Top Door				$ 17.66
4	W11408929		Bin, Gallon Door				$ 183.44
5	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
6	W11631253		Door Bin Assembly, Top   (Replaces: W11610620)				$ 137.24
7	W11408937		Bin, Shallow Door				$ 181.95
8	W11833010		Door Trim, Rc (bottom)   (Replaces: W11788358)		Appelez-nous	-
9	W11625082		Gasket, Door (grey)   (Replaces: W10761964)				$ 380.50
10	W11826030		Panel Mounting Bracket   (Replaces: W11788355)		Appelez-nous	-
11	W11830721		Door Trim, (rc Handle Side)   (Replaces: W11788354)		Appelez-nous	-
12	W11833011		Door Cover, Top (right Hand)   (Replaces: W11788357)		Appelez-nous	-
13	W11833009		Door Trim, Rc (top)   (Replaces: W11788360)		Appelez-nous	-
14	W11830722		Door Trim (hinge Side)   (Replaces: W11788364)		Appelez-nous	-
15	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
