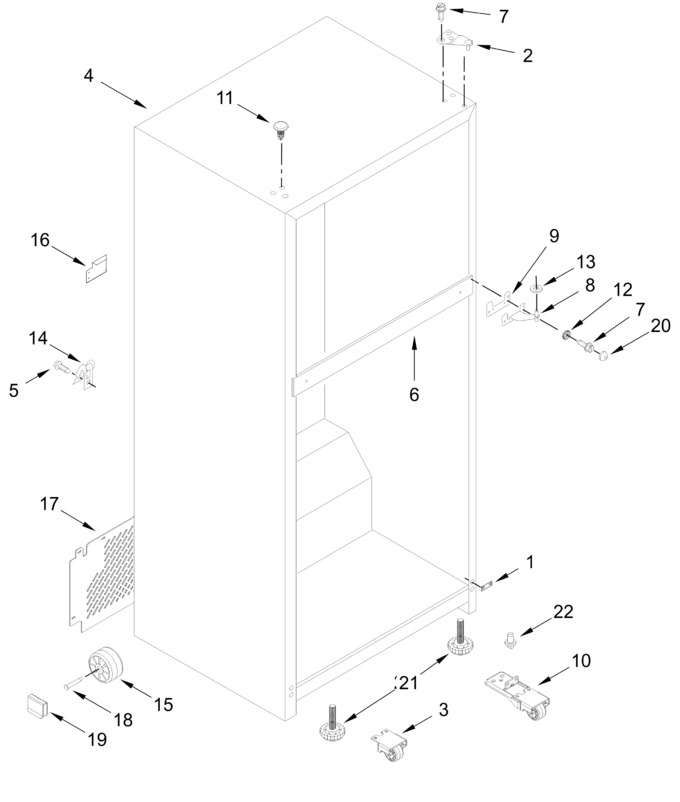

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11528669		Shim, Bottom Hinge   (Replaces: W11359355)				$ 15.20
2	WP2261963		Hinge Assembly, Top   (Replaces: 2261963)			Immediately	$ 107.48
3	W11256723		Roller Assembly   (Replaces: W10842654)				$ 85.45
4	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
6	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 82.82
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 10.06
10	W11096015		Lower Hinge And Roller Assembly   (Replaces: W10843861)			Immediately	$ 85.45
11	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 17.26
12	W10847959		Cap, Washer Dome   (Replaces: W10674773)				$ 10.14
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 10.28
14	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 19.91
15	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 28.85
16	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
17	W11476772		Cover, Unit   (Replaces: W11307288)				$ 39.15
18	W11594405		Axle, Roller   (Replaces: 981126)			Immediately	$ 17.21
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 10.38
20	W10846529		Cap, Dome (white)   (Replaces: W10674771)			Immediately	$ 17.84
21	W10854419		Leveler   (Replaces: W10671258)			Immediately	$ 16.22
22	W11026307		Hinge Pin   (Replaces: W10638688)			Immediately	$ 69.85
	W10853677		Cap, Dome (black)   (Replaces: W10679135)				$ 17.90
