SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

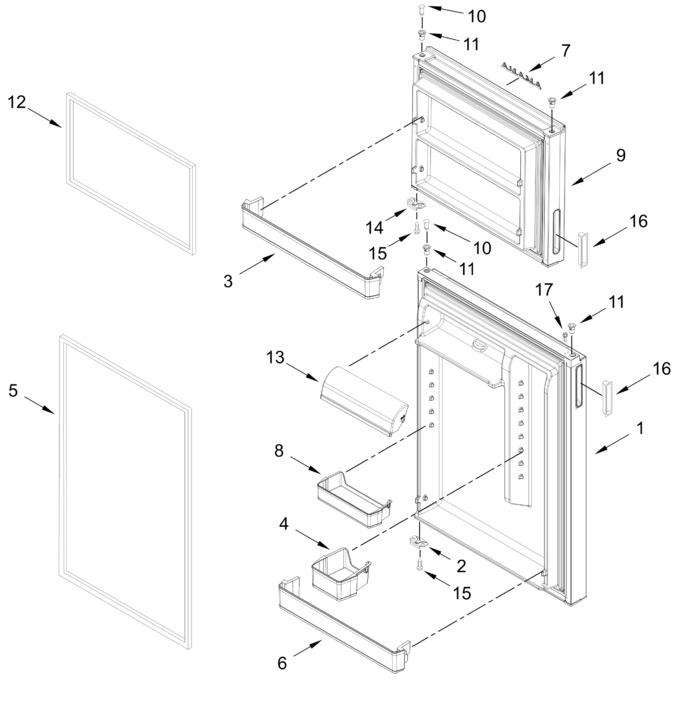

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778541		Door, Refrigerator (black, Includes Door Gasket And Handle Cup)   (Replaces: W11751003)		Appelez-nous	-
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
3	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
4	W11818648		Bin, Door (short)   (Replaces: W11750603)				$ 56.49
5	W11240749		Gasket, Rc Door (black)   (Replaces: W10678768)			Immediately	$ 300.69
6	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 56.49
7	W11318226		Badge (black)   (Replaces: W11046243)				$ 84.37
8	W11818647		Bin, Door (large)   (Replaces: W11750599)				$ 56.49
9	W11778540		Door, Freezer (black, Includes Door Gasket And Handle Cup)   (Replaces: W11751012)		Appelez-nous	-
10	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 24.21
11	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
12	W11229610		Gasket, Fc Door (black)   (Replaces: W10667843)			Immediately	$ 300.69
13	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	W11826171		Handle, Cup (black)   (Replaces: W11759455)		Appelez-nous	-
17	W10276642		Screw   (Replaces: 8533904)				$ 6.41

    View Diagram in Separate Window       Print Part List
