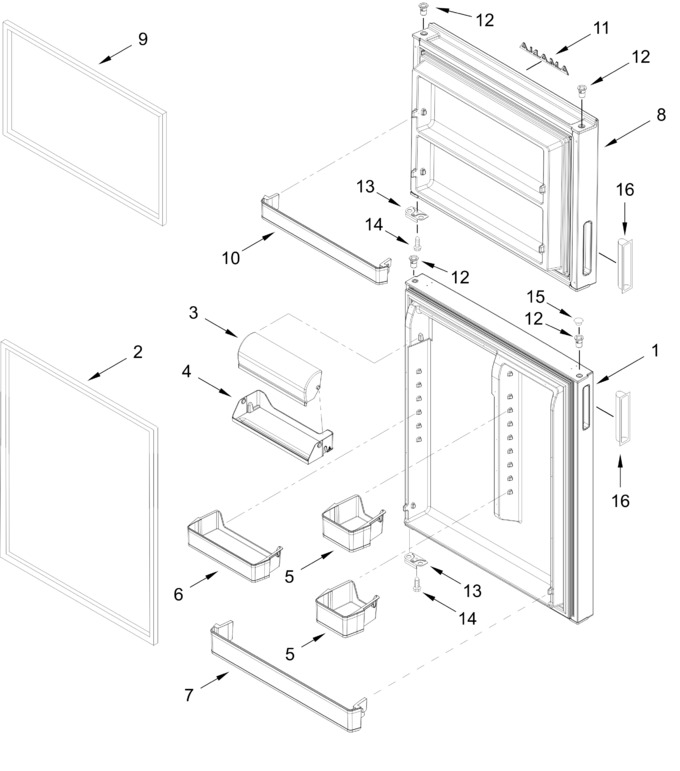

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826654		Door, Refrigerator (black, Includes Door Gasket And Handle Cup)   (Replaces: W11776733)		Appelez-nous	-
2	2177311		Gasket, Door (black)   (Replaces: W11406604)				$ 297.86
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11835295		Bin, Rc Door (short)   (Replaces: W11757098)		Appelez-nous	-
6	W11818647		Bin, Door (large)   (Replaces: W11750599)				$ 50.84
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826370		Door, Freezer (black, Includes Door Gasket And Handle Cup)   (Replaces: W11776718)		Appelez-nous	-
9	2177310		Gasket, Door (black)   (Replaces: W11406601)				$ 301.78
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11318226		Badge (black)   (Replaces: W11046243)				$ 75.93
12	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	W10276642		Screw   (Replaces: 8533904)				$ 5.77
15	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 21.79
16	W11826171		Handle, Cup (black)   (Replaces: W11759455)		Appelez-nous	-
	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 72.40
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
