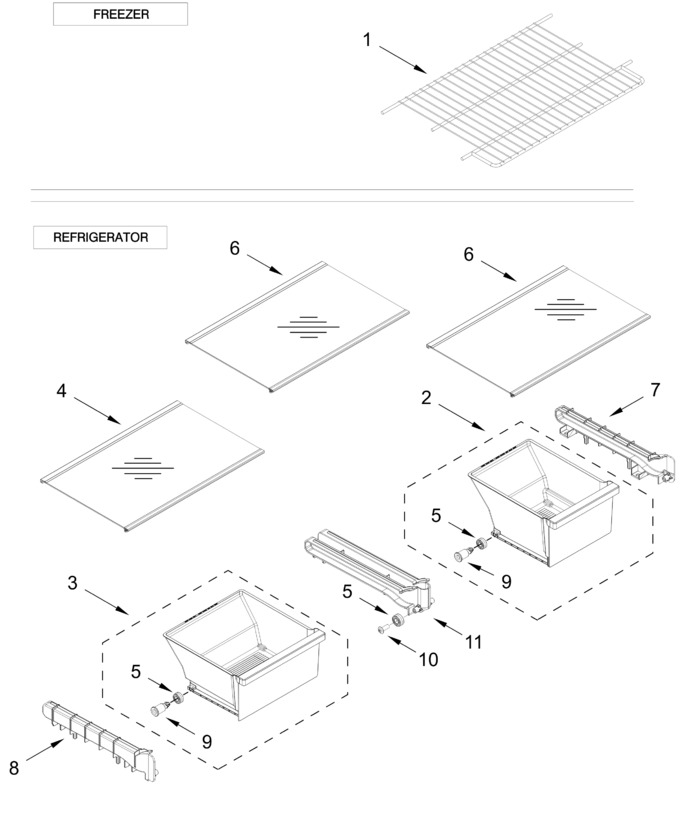

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10477093 | Shelf, Wire |
|
- | |||||
| 2 | W11835298 | Pan, 12 In Crisper (Replaces: W11768941) |
|
- | |||||
| 3 | W11835299 | Pan, 16 In Crisper (Replaces: W11768939) |
|
- | |||||
| 4 | W11736735 | Crisper Shelf Assembly (Replaces: W11553156) |
|
$ 243.19 | |||||
| 5 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.17 | ||||
| 6 | W11736734 | Shelf (rc) Assembly (Replaces: W11553155) |
|
Immediately | $ 243.45 | ||||
| 7 | W11051442 | Track Rail, Right Hand (Replaces: W10694151) |
|
$ 108.91 | |||||
| 8 | W11025586 | Track Rail, Left Hand (Replaces: W10694149) |
|
$ 112.19 | |||||
| 9 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 16.11 | ||||
| 10 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 11 | W11652044 | Rail, Center Track (Replaces: W10694150) |
|
$ 34.58 |
