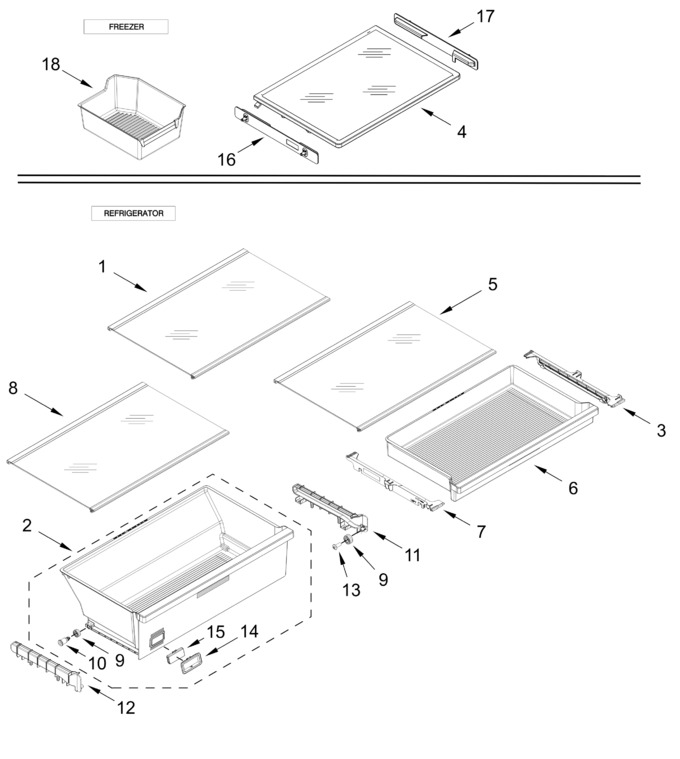

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11829872		Rc Shelf Assembly   (Replaces: W11553157)				$ 254.65
2	W11835310		Pan, Fw Crisper   (Replaces: W11768942)		Appelez-nous	-
3	W11835311		Slider, Meat Pan (right)   (Replaces: W11778239)				$ 31.03
4	WPW10601431		Shelf, Freezer Glass   (Replaces: W10601431)				$ 249.34
5	W11829869		Meat Pan Shelf Assembly   (Replaces: W11771490)		Appelez-nous	-
6	W11835315		Pan, Fw Meat   (Replaces: W11750399)				$ 208.46
7	W11835314		Slider, Meat Pan (left)   (Replaces: W11778240)				$ 31.03
8	W11829871		Crisper Shelf Assembly   (Replaces: W11553152)		Appelez-nous	-
9	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
10	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
11	W11051442		Track Rail, Right Hand   (Replaces: W10694151)				$ 121.01
12	W11025586		Track Rail, Left Hand   (Replaces: W10694149)				$ 124.65
13	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 8.18
14	W10435530		Frame, Humidity Control				$ 16.29
15	W10431229		Control, Humidity				$ 16.11
16	W11395919		Support, Freezer Shelf (left Side)				$ 30.07
17	W11395921		Support, Freezer Shelf (right Side)				$ 30.07
18	W11625904		Pan, Ice Cube   (Replaces: W10898951)				$ 67.83
