Unit Parts

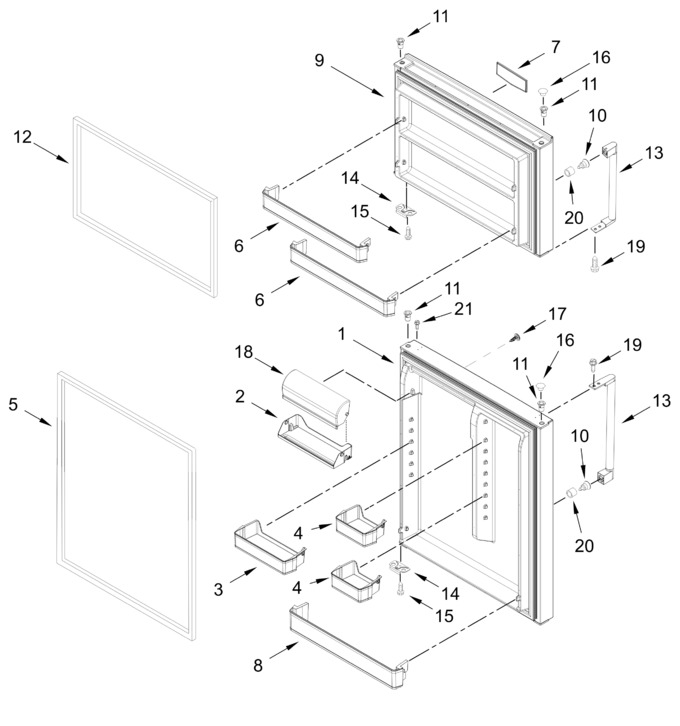

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826652		Door, Refrigerator (stainless, Includes Door Gasket)   (Replaces: W11776726)				$ 233.08
2	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
3	W11824288		Bin, Rc Door (large)   (Replaces: W11807536)				$ 56.49
4	W11835330		Bin, Rc Door (short)   (Replaces: W11756570)				$ 56.49
5	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 335.80
6	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
7	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 42.40
8	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
9	W11826368		Door, Freezer (stainless, Includes Door Gasket)   (Replaces: W11776711)				$ 173.17
10	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
11	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 14.81
12	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 279.10
13	W11824285		Handle, Door (stainless)   (Replaces: W11751027)			Immediately	$ 120.93
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2254517		Plug, Hinge Hole (grey)   (Replaces: 2254517)			Immediately	$ 24.34
17	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
20	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 16.11
21	W10276642		Screw   (Replaces: 8533904)				$ 6.41
