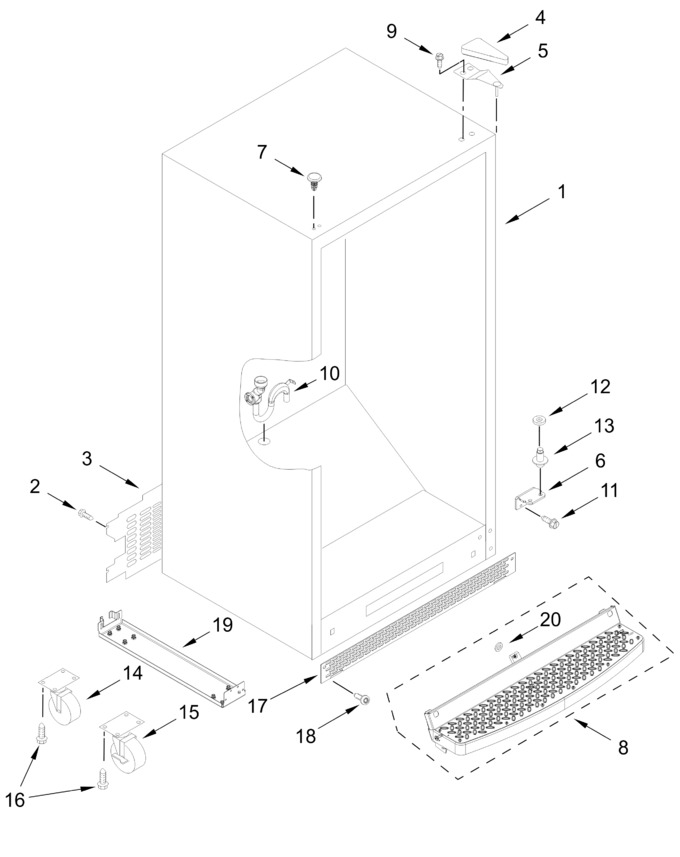

Cabinet Parts
Door Parts
Liner Parts
Optional Parts (not Included)
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11311062 | Cover, Unit |
|
$ 117.11 | |||||
| 4 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 5 | W11728308 | Hinge Assembly, Top (Replaces: W11638835) |
|
$ 24.30 | |||||
| 6 | W11805068 | Hinge Plate, Bottom (Replaces: W11790781) |
|
$ 147.65 | |||||
| 7 | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 19.18 | |||||
| 8 | W11199807 | Pedal Assembly (Replaces: W10897311) |
|
- | |||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 50.98 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 12 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 14.89 | |||||
| 14 | WP8204601 | Caster, Swivel 5 (Replaces: 8204601) |
|
$ 84.91 | |||||
| 15 | W10741533 | Caster, Rigid 5" (left Hand, With Brake) (Replaces: 8211251) |
|
- | |||||
| 16 | WP3400527 | Screw (Replaces: 3400527) |
|
$ 8.07 | |||||
| 17 | W11199697 | Grill, Toe (Replaces: W10891102) |
|
$ 112.81 | |||||
| 18 | W11582178 | Screw (grey) (Replaces: W11546560) |
|
$ 14.72 | |||||
| 19 | W11316673 | Bracket, Caster (Replaces: W11088141) |
|
- | |||||
| 20 | W11316683 | Washer (Replaces: W11130286) |
|
- | |||||
| 8211250 | Caster, Rigid 5" (right Hand, With Brake) |
|
$ 44.61 |
