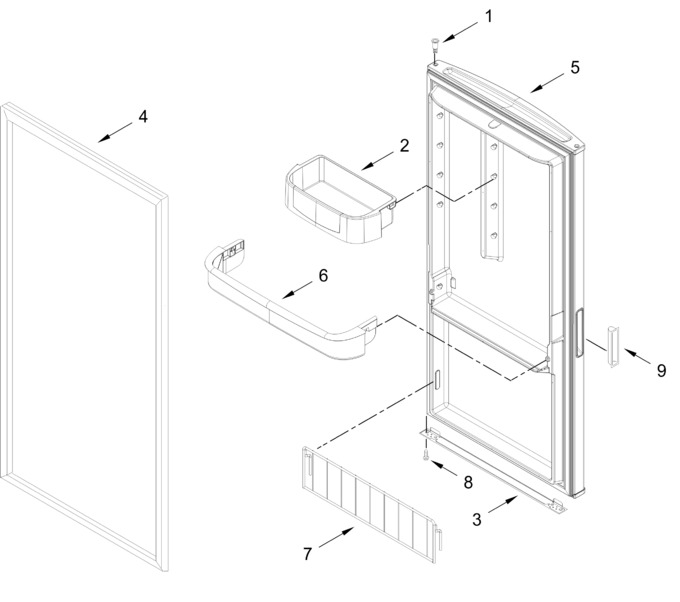

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 2 | W11197063 | Bucket, Door (small) (Replaces: W11030699) |
|
$ 150.20 | |||||
| 3 | W10891103 | Stop, Door |
|
- | |||||
| 4 | W11102846 | Gasket, Door (black) |
|
$ 291.41 | |||||
| 5 | W11233211 | Door Assembly (black) (Replaces: W11102809) |
|
$ 971.79 | |||||
| 6 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 94.31 | ||||
| 7 | W11251045 | Shelf Door, Pizza (Replaces: W10656118) |
|
- | |||||
| 8 | 7101P35660 | Screw |
|
- | |||||
| 9 | W11507571 | Handle, Cup (black) (Replaces: W11374422) |
|
$ 21.98 | |||||
| W11197067 | Bucket, Door (medium) (Replaces: W11082376) |
|
$ 137.51 |
