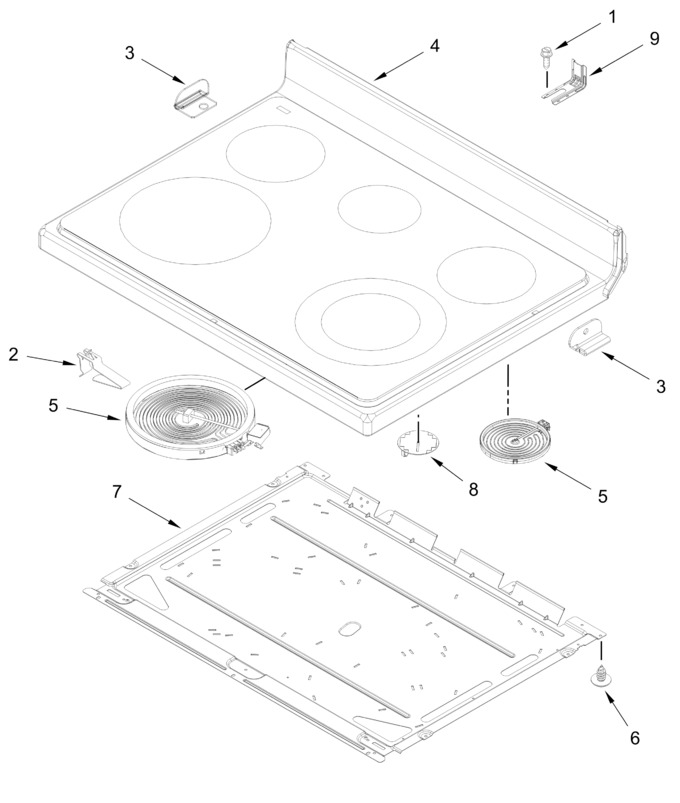

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11824888		Cooktop (black)		Appelez-nous	-
5	W11047722		Element (2500w)   (Replaces: 8273992)			Immediately	$ 132.46
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
8	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
9	W11839019		Bracket, Anti-tip   (Replaces: W11812917)			Immediately	$ 28.54
	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 225.62
	W11839017		Harness, Main   (Replaces: W11821827)		Appelez-nous	-
	W11598759		Harness, Warm Zone		Appelez-nous	-
	W11517959		Element, (dual 3000w)   (Replaces: W11282542)			Immediately	$ 146.68
	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11171894		Harness, Cooktop (left)				$ 228.00
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
