SELECT A DIAGRAM

Chassis Parts

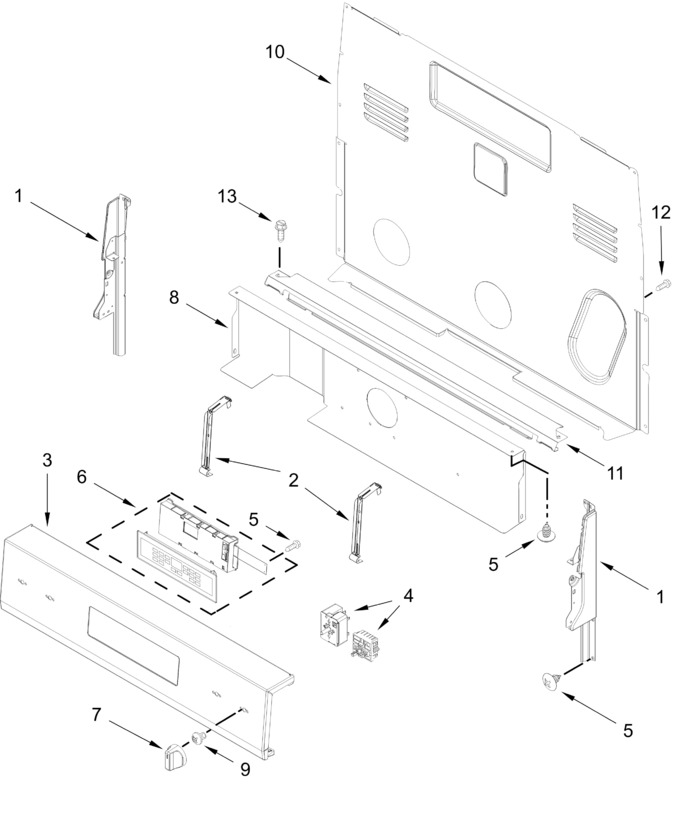

Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Console Endcap (black,left)				$ 347.77
2	W11713812		Bracket, Control   (Replaces: W11290750)				$ 30.37
3	W11839016		Console (stainless)   (Replaces: W11825158)		Appelez-nous	-
4	W11162115		Switch, Infinite   (Replaces: W10600015)			Immediately	$ 110.10
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11839018		User, Interface (black)   (Replaces: W11773435)		Appelez-nous	-
7	W11707069		Knob (black)   (Replaces: W11331196)			Immediately	$ 22.51
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
13	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 239.88
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11213292		Console Endcap (black, Right)				$ 71.65
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 115.27
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
