View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Freezer Door Parts
Liner And Ice Maker Parts
Optional Parts
Refrigerator Door Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

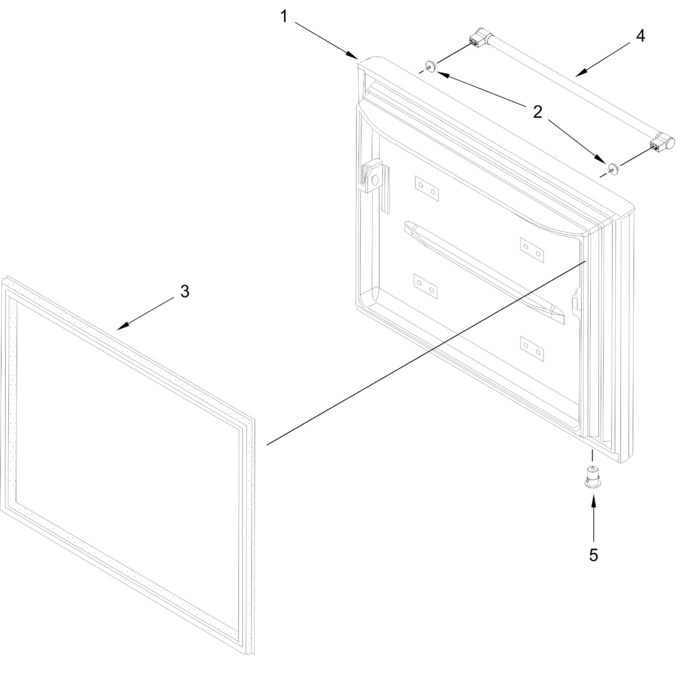

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10858419 | Freezer Door, Stainless (includes Door Gasket) (Replaces: W10858419) |
|
$ 840.29 | |||||
| 2 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 3 | W10836785 | Gasket, Door (grey) (Replaces: W11464960) |
|
$ 278.29 | |||||
| 4 | W10914181 | Handle Assembly (stainless) (Replaces: W10838131) |
|
Immediately | $ 226.98 | ||||
| 5 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 |
