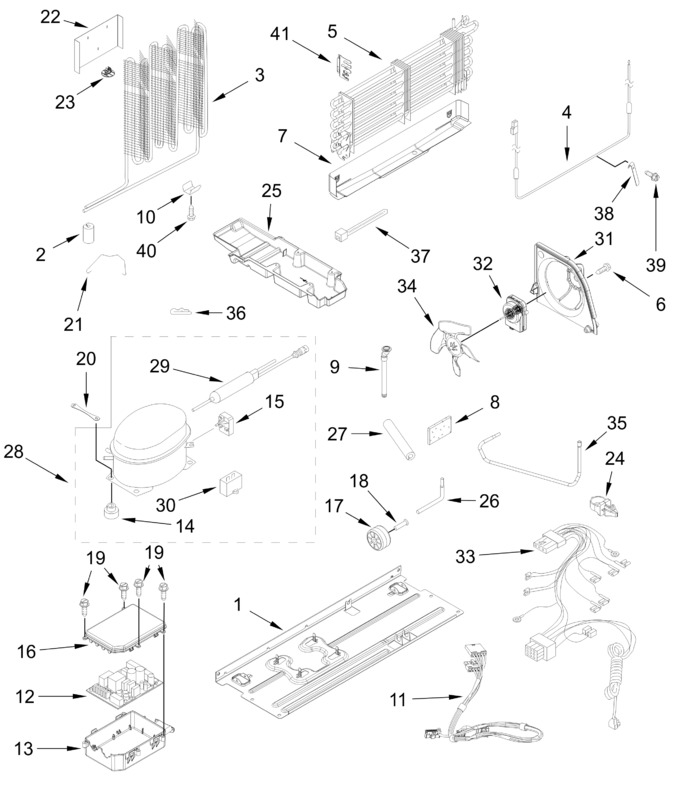

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 164.30 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 278.20 | |||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 5 | W11611030 | Evaporator Assembly (Replaces: W11393935) |
|
Immediately | $ 220.74 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 46.55 | |||||
| 8 | W11553819 | Sound Insulation (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 9 | W11284510 | Tube, Drain (Replaces: W11115756) |
|
$ 70.53 | |||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 11 | W11632351 | Low Voltage Wire Assembly (Replaces: W11515411) |
|
$ 24.44 | |||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 335.76 | ||||
| 13 | 2323186 | Box, Control |
|
$ 107.48 | |||||
| 14 | WPW10169124 | Grommet, Compressor (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | W11561262 | Device, Start (Replaces: W11503892) |
|
Immediately | $ 42.92 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 77.99 | |||||
| 17 | WPW10475495 | Roller, Cabinet (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 21 | W11658620 | Strap, Bale (Replaces: W11602682) |
|
- | |||||
| 22 | W10349514 | Cover, Condenser Bottom |
|
$ 82.40 | |||||
| 23 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 24 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 25 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 151.95 | |||||
| 26 | W11565815 | Tube, Process |
|
$ 43.89 | |||||
| 27 | W11505165 | Sleeve, Drier (Replaces: W11449167) |
|
- | |||||
| 28 | W11740253 | Compressor (Replaces: W11592429) |
|
Immediately | $ 781.76 | ||||
| 29 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 31 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 82.52 | ||||
| 32 | WP2188874 | Motor, Condenser (Replaces: W11546725) |
|
Immediately | $ 124.18 | ||||
| 33 | W11432778 | Unit Wire Harness Assembly |
|
Immediately | $ 114.83 | ||||
| 34 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 35 | W11567980 | Tube, Suction |
|
Immediately | $ 67.87 | ||||
| 36 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 12.10 | ||||
| 37 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 38 | W11611126 | Heat Probe (Replaces: W11558549) |
|
$ 23.16 | |||||
| 39 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 40 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 41 | W11466555 | Bracket, Evaporator |
|
$ 34.45 | |||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| W11504445 | 5/4 Nr Ms 00 |
|
Immediately | $ 28.92 | |||||
| ARI7F21E2684783037DC10D795033CD2ABA | 48 Grams (r600a) |
|
- | ||||||
| ARI8F052732CB60E39F6CA094A8168A5109 | (process Tube To Compressor) |
|
- | ||||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| W11504450 | 4/1.8 Nr Ms 00 |
|
Immediately | $ 46.52 | |||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- | ||||||
| W11504447 | 5/1.8 Nr Ms 00 |
|
Immediately | $ 43.90 | |||||
| W11506624 | 4 Nk Ms 00 |
|
Immediately | $ 20.94 | |||||
| W11506619 | 8 Nk Ms 00 |
|
Immediately | $ 25.88 | |||||
| ARI3031A698A6B8030D731C976AE04824C1 | (high Pressure Side To Compressor) |
|
- | ||||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- | ||||||
| ARIF479D1A0D17290EA712C859BF2E1C691 | (high Side To Condenser) |
|
- | ||||||
| ARI365422773BD6741F2B56A197441A318E | (heat Loop To Drier) |
|
- | ||||||
| W11578570 | 7/4.5 Nr Ms 00 |
|
Immediately | $ 64.29 |
