Cabinet Parts
Door Parts
Unit Parts
New Model Search:

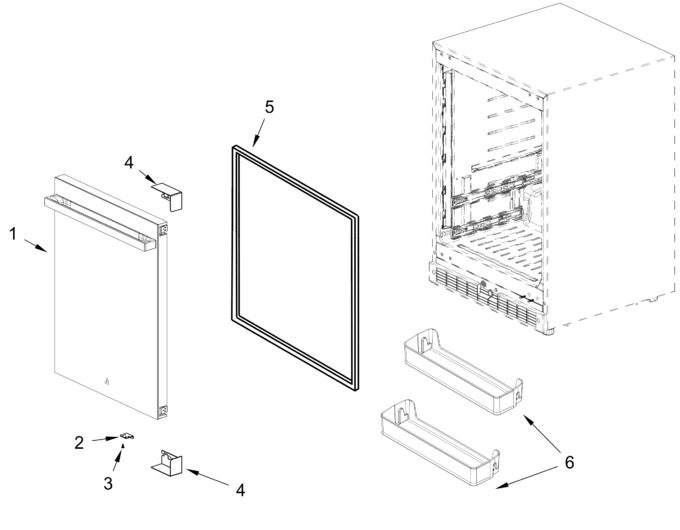

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11845853 | Door Assembly |
|
- | |||||
| 2 | W11823916 | Plate, Push (Replaces: W11822409) |
|
- | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 4 | W11360661 | Right Hinge (top) / Left Hinge (bottom) |
|
$ 155.43 | |||||
| 5 | W11747576 | Gasket. Door (Replaces: W11360668) |
|
Immediately | $ 89.21 | ||||
| 6 | W11407974 | Shelf, Bottle |
|
- | |||||
| W11360664 | Right Hinge (bottom) / Left Hinge (top) |
|
$ 155.43 |
